Frequency Range: VHF 136-174MHz; UHF 403-470MHz
Storage Channel: 128
Dimensions: 137 x 57.5 x 37.5 mm
Weight: 420g
1. Features

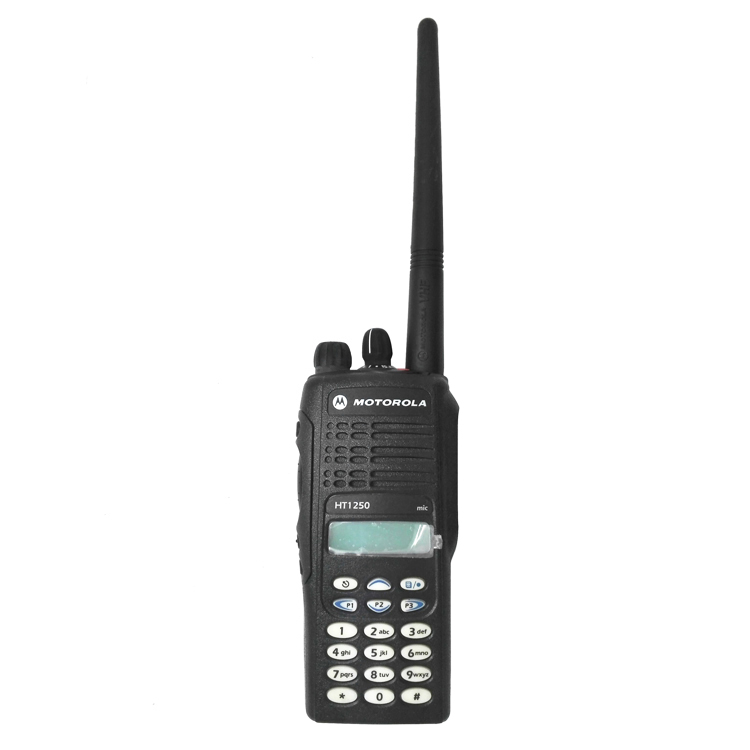

HT1250 The Versatile Radio The HT1250™ portable radio is an essential tool for growing organizations because of its unique versatility. The radio offers a full menu of advanced signaling features, including paging or calling selective radios or groups. Users can store information such as phone numbers, call lists and radio IDs for easy access. And with Motorola's unique X-Pand™ technology, audio clarity is superb–even in noisy surroundings. The large LCD display is extremely helpful in large communication networks and critical situations. The radio of choice is the HT1250™ portable. It’s the radio that changes with your needs.
• Small, Light weight and Durable
• Available in Limited and Full Keypad Models
• 1 2. 5 /2 5 kHz Switchable Channel Spacing
• Clock with Alarm
• Battery Status Indicator
• Telephone Interconnect Capable
• Option Board Capabilities
2. Specifications
Genneral |
|
Frequency Range |
VHF: 136~174MHz UHF: 403~470MHz,450-520MHz |
Memory Channel |
128 |
Channel spacing |
12.5/20/25KHz |
Operating Temperature |
-30℃~+60℃ |
Operating Voltage |
DC 7.5V |
Demission |
137 x 57.5 x 37.5 mm |
Weight |
420g |
Transmission Part |
|
Output power |
VHF: 1-5W UHF: 1-4W |
Frequency stability |
±0.5ppm |
Hum and Noise |
≤-40dB (12.5kHz) ≤-45dB (25kHz) |
Adjacent Channel Power |
60 dB (12.5 kHz) 70 dB (20 and 25 kHz) |
4FSK Digital Modulation |
12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
Modulation Limiting |
± 2.5 kHz @ 12.5 kHz ± 4.0 kHz @ 20 kHz ± 5.0 kHz @ 25 kHz |
Reception Part |
|
Analog Sensitivity |
0.16 uV |
Digital Sensitivity |
0.14 uV |
Intermodulation |
70 dB |
Adjacent Channel Selectivity |
60 dB (12.5 kHz) 70 dB (20/25 kHz) |
Spurious Rejection |
70dB |
Hum and Noise |
-40 dB (12.5 kHz) -45 dB (25 kHz) |
3. Shipping
4. Payment Terms
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
