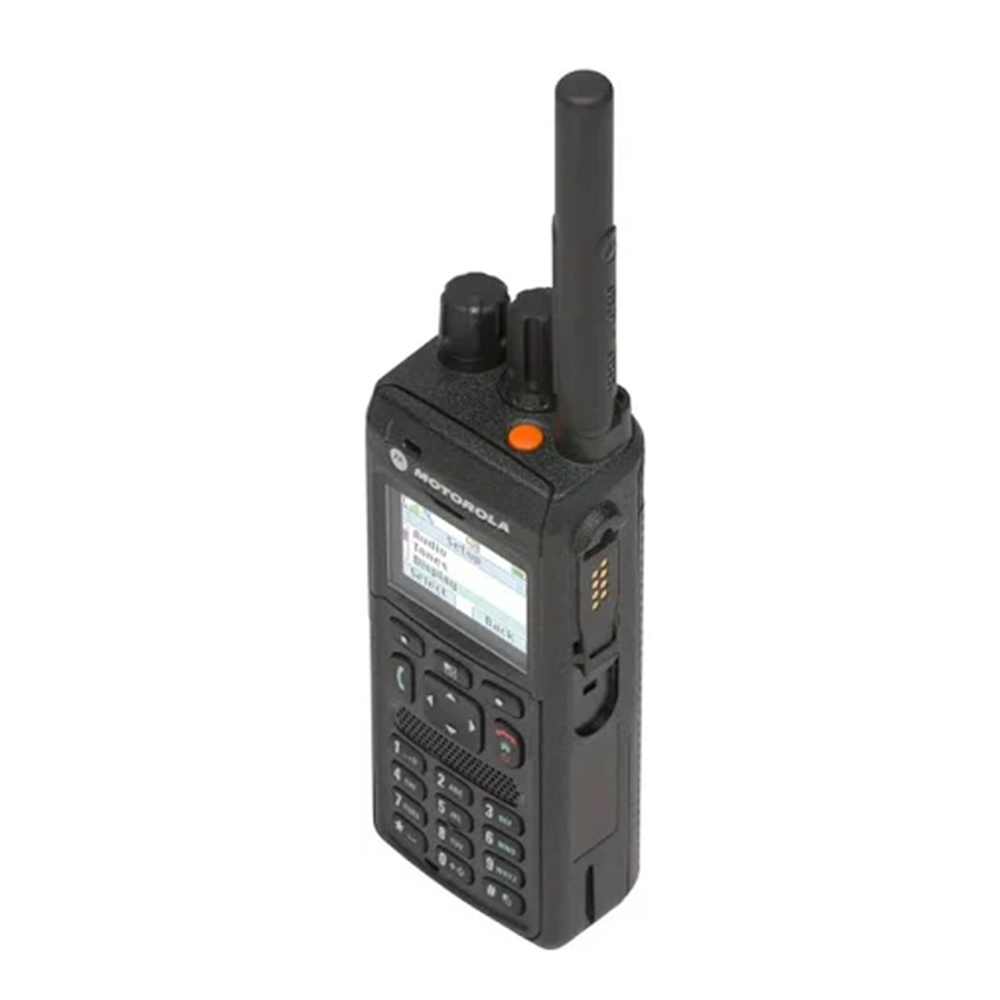

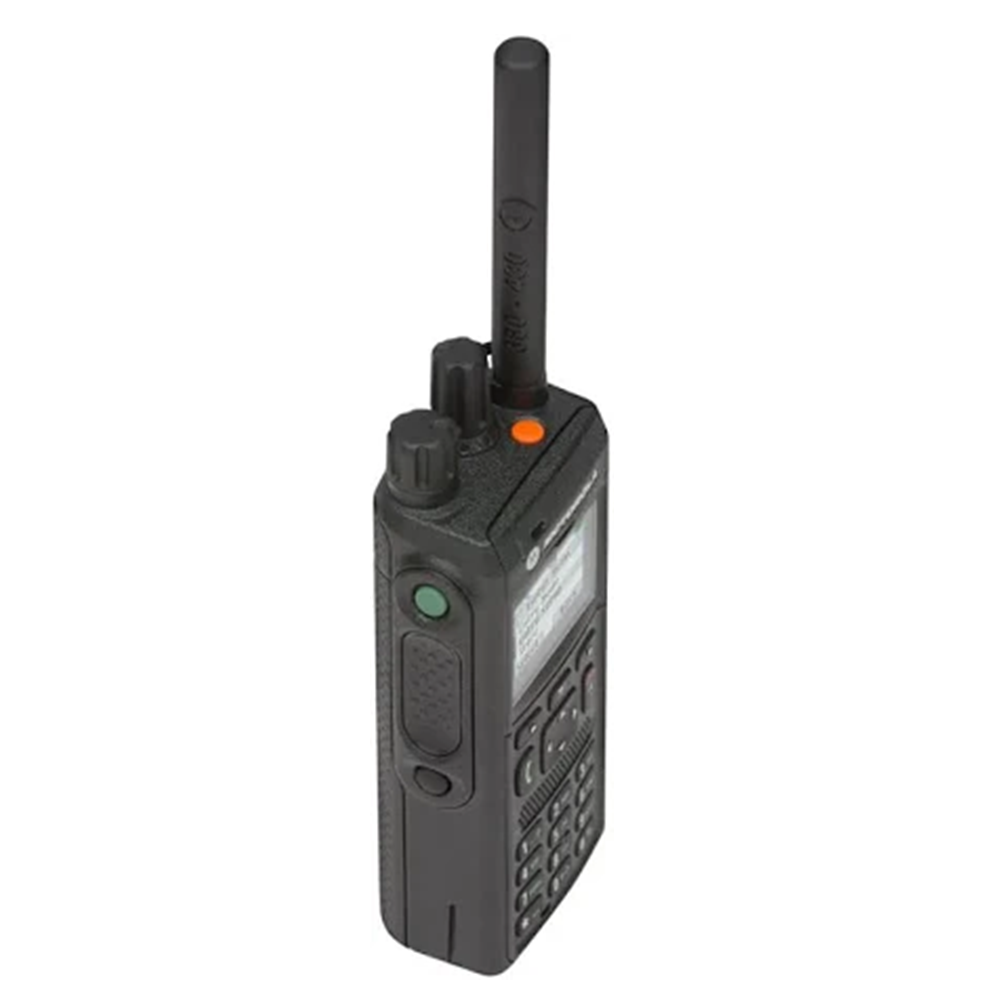

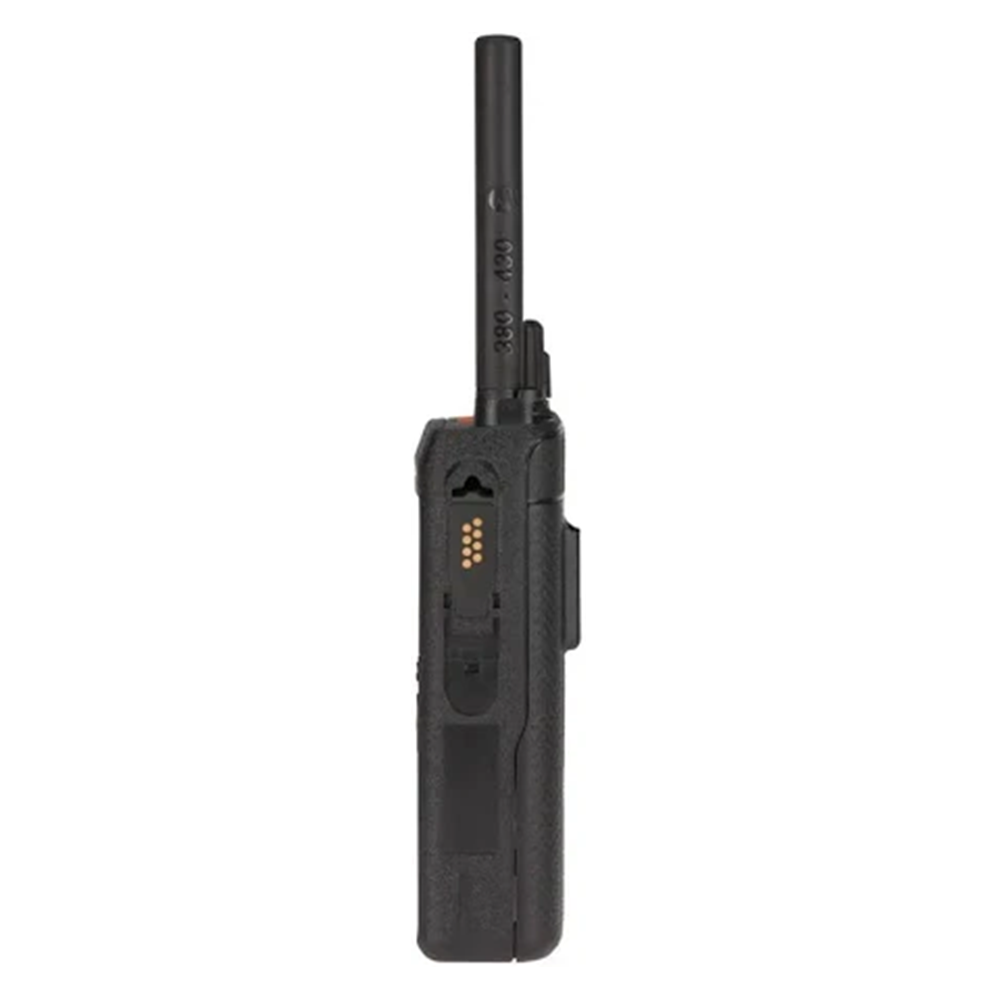

Motorola Tetra Two Way Radio MTP3550
Frequency Range: 350-470 MHz, 800 MHz
Dimensions: 124 x 53 x 33.5 mm
Weight (with standard battery): 280g
Dust and Water Intrusion: IP67 Capable
1. Features
· The MTP3000 Series radios are the result of more than 15 years of focus in TETRA on increasing user safety, enhancing efficiency and improving communications. The radios are packed with features which are essential for safe and effective operations, as well as significant improvements in areas such as audio and ruggedness.
·
· The MTP3000 Series radios have all been enhanced with IP65, IP66 and IP67 for dust and water ingress protection, wideband support for 350-470 MHz and 800 MHz as well as an RFID hardware option.
·
· The MTP3100 and MTP3150 are the entry level radios packing in all the TETRA essentials and providing an easy transition from analogue to digital radio.
·
· The MTP3250 add features such as Global Navigation Satellite System (GNSS) capability including BeiDou or Glonass and secure Bluetooth for users who require a feature rich TETRA radio.
·
· The new MTP3500 and MTP3550 radios will further enhance the MTP3000 Series delivering a fully featured radio for public safety and mission critical users with the addition of a man down sensor, vibrate alert and End-to-End Encryption (E2EE)
KEY FEATURES:
IP65, IP66 & IP67
WIDEBAND, 350-470 MHZ & 800 MHZ
GPS & BEIDOU OR GLONASS
MAN DOWN
VIBRATE ALERT
2. Specifications
Frequency | 350-470 MHz, 800 MH |
Dimensions (HxWxL) | 124 x 53 x 33.5 mm (With 1950mAh battery)) |
124 x 53 x 36.7 mm (with 2200mAh & IMPRES2 3400mAh battery) | |
Weight with battery: | 280g (with 1950mAh battery) |
295g (with 2200mAh battery | |
TETRA SERVICES | |
Transmitter RF Power | Class 31 (2.8W) Class 3L (1.8W) Class 4 (1W) |
Adaptive Power Control | Per EN 300 392-2 |
Receiver Static Sensitivity | 350-470 MHz: -116dBm (min); -118dBm (typical) 800 MHz: -114dBm (min); -116dBm (typical) |
Receiver Dynamic Sensitivity | 350-470 MHz -107dBm (min); -109dBm (typical) 800 MHz: -105dBm (min); -107dBm (typical) |
VOICE | |
Full Duplex Call | TMO: Private, PABX, PSTN, emergency |
Half Duplex call | TMO: Private, group, emergency |
DMO: Private, group, emergency | |
Other Voice Functions | Inter-MNI ; Gateway; Repeater ; PTT double push ; Pre-emptive priority calls |
DMO REPEATER | |
DMO repeater mode features and functions | ETSI type 1A DMO Repeater for channel efficient operation |
Repeats DMO voice and tone signalling on selected talkgroup | |
Repeats SDS and Status messaging on selected talkgroup | |
Transmission of Repeater Presence Signal | |
Emergency Call (Pre-emptive Priority Call) | |
Monitoring of and participation in calls whilst in Repeater mode | |
BLUETOOTH | |
Bluetooth Versions Supported | Bluetooth 2.1 + EDR, Bluetooth 4.0, Bluetooth Smart (BTLE) |
Bluetooth Security | Bluetooth 2.1 Introduces Mandatory Encryption with Secure Simple Pairing (SSP), Easier Pairing and Preventing Sniffing/Hacking |
Bluetooth Audio Profiles | Headset Profile (HSP), Fast PTT with Motorola Solutions Accessories |
Bluetooth Data Profiles | Serial Port Profile, Dial Up Networking Profile, Discovery Mode, Generic Access Profile, Generic Attributes Profile (GATT), Heart Rate Profile, Battery Service Profile, Devices Info Profile |
SATELLITE / OUTDOOR NAVIGATION SERVICE | |
Constellations Supported | GPS, BeiDou/Glonass |
Antenna | Integrated Internal Antenna |
Simultaneous Satellites | 12 |
GNSS Tracking Sensitivity, dBm | GPS: -160 dBm (guaranteed); -161 dBm (typical) |
Protocols | ETSI LIP (Short and Long), Motorola LRRP |
