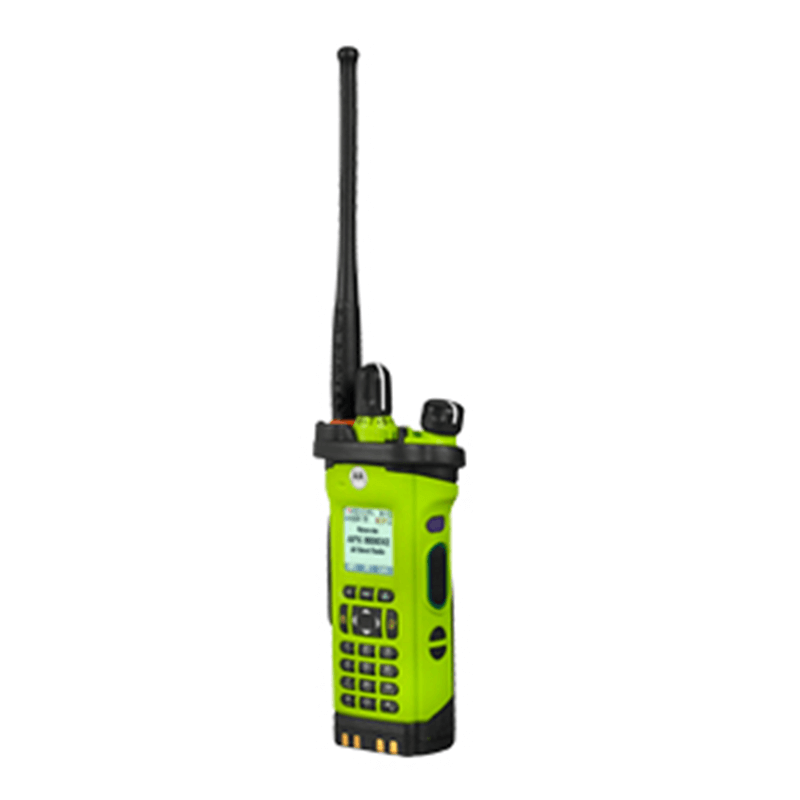

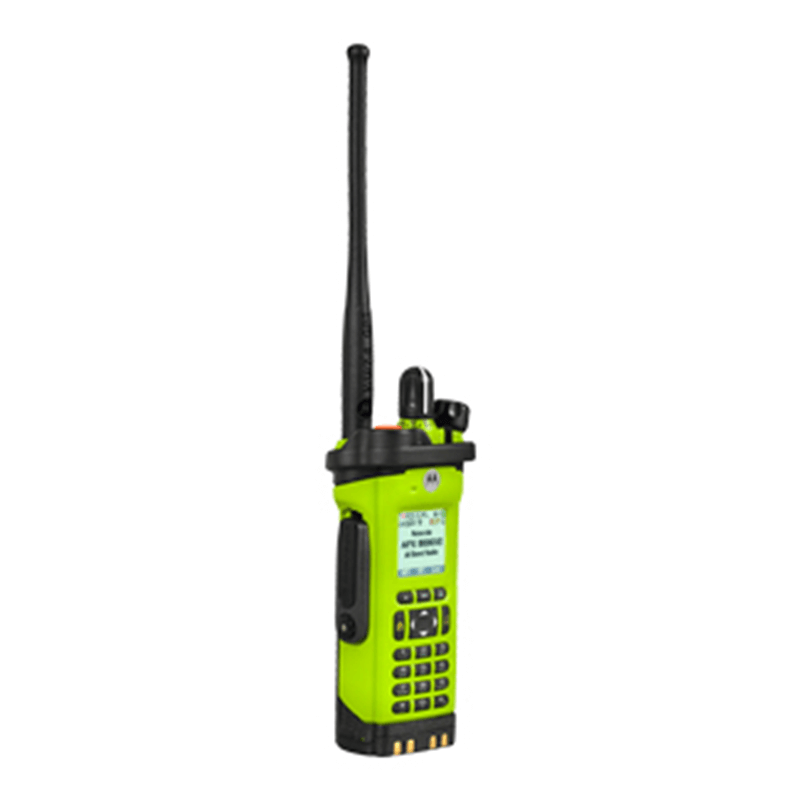

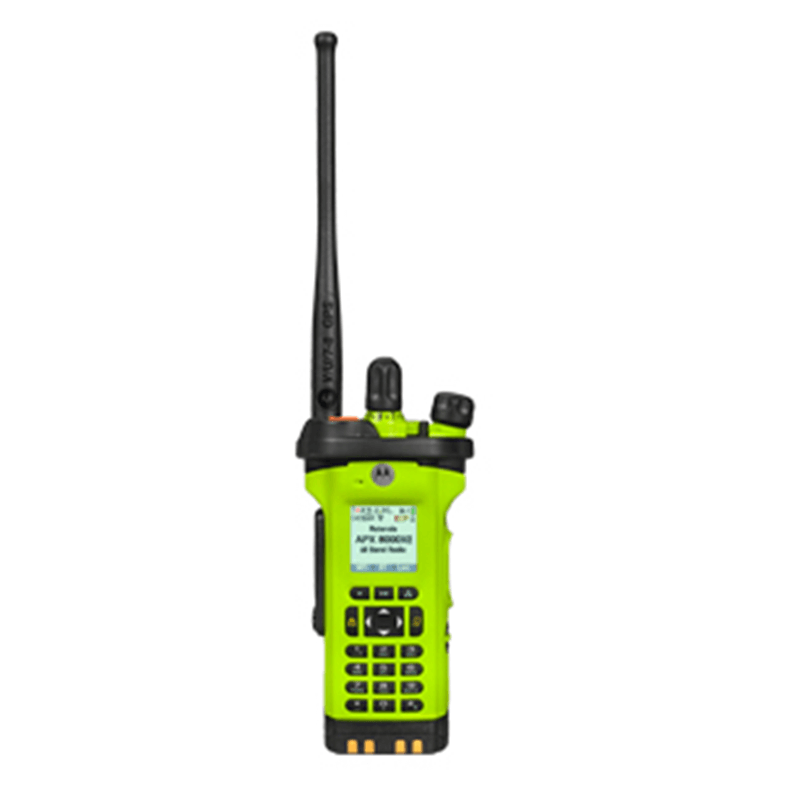

APX 8000XE ALL-BAND MOTOROLA PORTABLE P25 RADIO PHASE 2

APX 8000XE ALL-BAND MOTOROLA PORTABLE P25 RADIO PHASE 2

Frequency Range: 700/800MHZ; VHF 136-174MHz; UHF Range 1:380-470MHz; UHF Range 2:450-520MHz
Channel Capacity: 3000
Dimensions (HxWxD): 3.4” x 2.3” x 1.7”
Weight: 6.5 oz

APX™ 8000XE ALL-BAND P25 PORTABLE RADIO

Working together with firefighters around the world, we designedthe APX™ Extreme Series, a safe, and easy and efficient to use portfolio of ergonomically advanced, ultra-rugged radios and accessories.W ith over eighty years of experience in ergonomics, design and technology for public safety, the APX XE Series is the culmination of cross-disciplines and user input.

Firefighters said they wanted equivalent extreme features as the APX Extreme Series including a larger display, exaggerated control knobs, and the capability to communicate with surrounding municipalities within an all-band radio solution.T he APX 8000XE brings together not only these requirements, but also the integration of WiFi® for programming flexibility.

The APX 8000XE is redefining mission critical communications by delivering an ultra-durable radio that combines unlimited interoperability, loud audio, and secure WiFi connectivity. With a dedicated channel knob and ability to withstand 500 degrees heat exposure, the APX XE500 Remote Speaker Microphone is the perfect companion to the APX 8000XE.W hen combined, the APX 8000XE All-Band Portable Radio and XE500 Remote Speaker Microphone create the ultimate mission critical solution designed for safety personnel in extreme environments.

1. Features

KEY FEATURES

• Unlimited interoperability with one device

• Secure WiFi for seamless software updates

• Extra-large buttons for glove use

• IP68 submersion (2 meters, 4 hours)

• ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive Electrical Equipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G; Class III, Division 2

• Integrated GPS/GLONASS for outdoor location tracking

• Equipped with FIPS - certified encryption hardware

• RFID volume knob for asset tracking (optional)

• Bluetooth-enabled APX radios capable of transmitting SCBA voice and data

RF BANDS

• 700/800 MHz, VHF, UHF Range 1 & 2

OPERATION MODES

• 9600 Baud Digital APCO P25 Phase 1 FDMA and Phase 2 TDMA Trunking

• 3600 Baud SmartNet®, SmartZone®, Omnilink Trunking

• Digital APCO 25, Conventional, Analog MDC 1200, Quick Call II System Configurations

• Narrow and wide bandwidth digital receiver (6.25 kHz equivalent/25/20/12.5 KHz)

STANDARD FEATURES

• Mission Critical Wireless Bluetooth*

• ASTRO 25 Integrated Voice & Data

• Integrated GPS/GLONASS for outdoor location tracking

• Software Key

• Text-Messaging

• Voice Announcements

• ISSI 8000 Roaming

• Radio Profiles, Dynamic Zone

• Intelligent Lighting

• Single-key ADP Encryption

• IP68 submersion (2 meters, 4 hours)

• IMPRES Battery

• ANSI/ISA-12.12.01-2015 CAN/CSA C22.2 NO. 213-15, Nonincendive Electrical Equipment for Use in Class I, Division 2, Groups A, B, C, D; Class II, Division 2, Groups F, G; Class III, Division

ADAPTIVE AUDIO ENGINE

• 3 Watt Speaker with Adaptive Equalization

• Adaptive Dual-sided Operation

• Adaptive Noise Suppression Intensity

• Adaptive Gain Control

• Adaptive Windporting PROGRAMMING

• Utilizes Windows 7 & 8 Customer Programming Software (CPS) with Radio Management OPTIONAL FEATURES

• WiFi 802.11 b/g/n

• RFID Volume Knob

• Multikey for 128 keys and multi-algorithm

• Programming Over Project 25 (OTAP)

• Over the Air Rekey (OTAR)

• Digital Tone Signaling

• P25 Authentication

• Man Down Sensor

2. Specification

GENERAL SPECIFICATIONS
Channel Capacity	3000(model 3.5)
Frequency	764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz
FLASHport Memory	2 GB
Maximum Frequency Separation	Full Bandsplit
Audio Response1	+1, -3 dB
Rated RF Output Power Adj1	700 MHz: 1-2.5 Watts ;800 MHz: 1-3 Watts ; VHF:1-6Watts; UHF:1-5Watts
Dimensions (HxWxD)	Li-Ion IMPRES UL2054 DIV 2 Rugged 3400 mAh IP68** 3.4” x 2.3” x 1.7”
Weight	6.5 oz
Display (Model 3.5)	Top display plus: Full bitmap color LCD display 4 lines of text x 14 characters 2 lines of icons 1 menu line x 3 menus White backlight
Keypad	Backlit keypad 3 soft keys 4 direction navigation key 4x3 keypad Home and Data buttons
RECEIVER
Frequency Range/Bandsplits	764-776 MHz; 851-870 MHz; 136-174 MHz; 380-520 MHz
Channel Spacing	25/20/12.5 kHz
Maximum Frequency Separation	Full Bandsplit
Audio Output Power at Rated/Max	3 Watt/5 Watt
Selectivity (25 kHz / 12.5 kHz)1, 5	79 dB / 72 dB; 78 dB / 72 dB ;82 dB / 77 dB ;80 dB / 74 dB
Intermodulation Rejection1	81 dB ;80 dB; 82 dB; 80 dB
Audio Distortion at Rated	1.2% ;1.3%; 1.3%; 1.2%
Spurious Rejection1	98 dB ;98 dB; 92 dB; 98 dB
ENCRYPTION
Supported Encryption Algorithms ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm	ADP, AES, DES, DES-XL, DES-OFB, DVP-XL, Localized Algorithm
Encryption Algorithm Capacity	8
Encryption Keys per Radio	Module capable of storing 1024 keys.Programmable for 128 Common Key Reference (CKR) or 16 Physical Identifier (PID)
GPS/GNSS SPECIFICATIONS	Constellations GPS & GLONASS
Water and Dust Intrusion	IP68 (2 meters, 4 hours)
TRANSMITTER
Frequency	764-776, 794-806 MHz 806-825, 851-870 MHz 136-174 MHz 380-470 MHz 450-520 MHz
Channel Spacing	25/20/12.5 kHz
Power Output : 700 MHz: 1-2.5 Watts 800 MHz: 1-3 Watts ; VHF: 1-6 Watts ,UHF :1-5Watts 1-6 Watts 1-5 Watts 1-6 Watts 1-5 Watts 1-5 Watts

3. Shipping

4. Payment Temrs

EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.

Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
