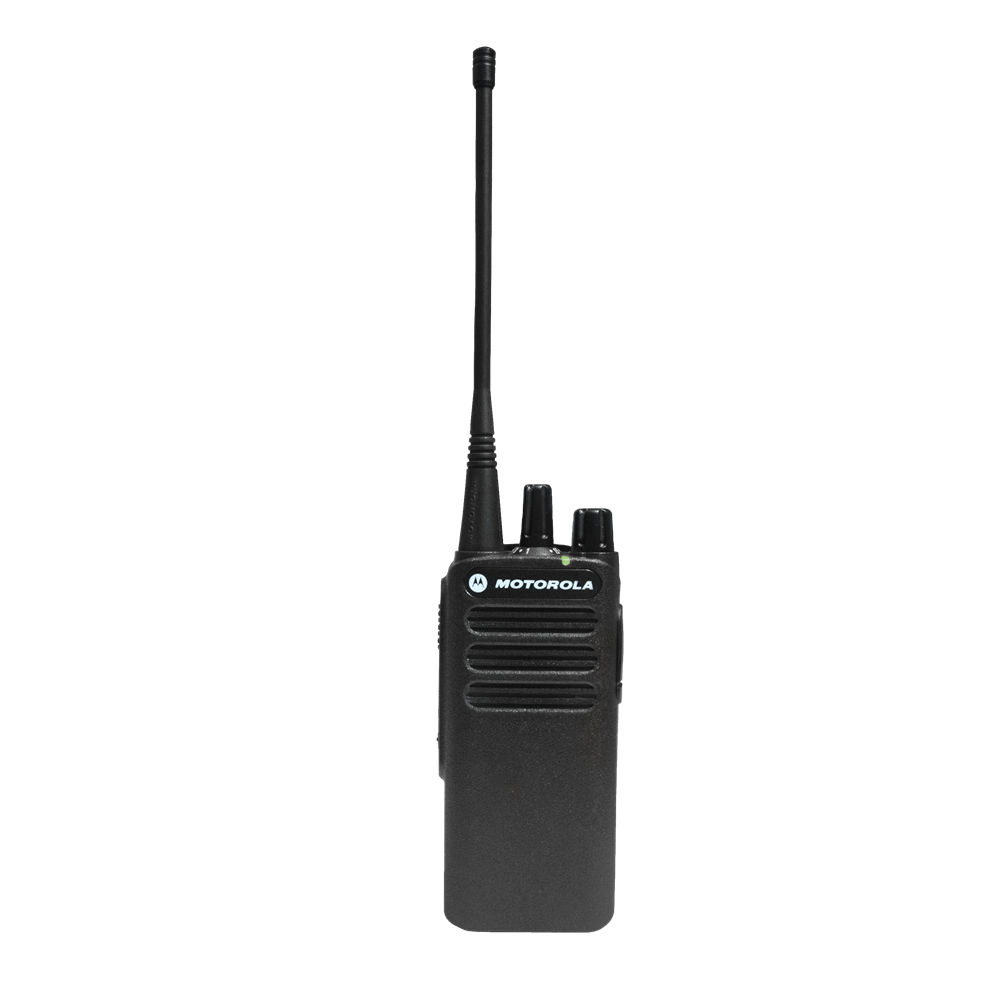

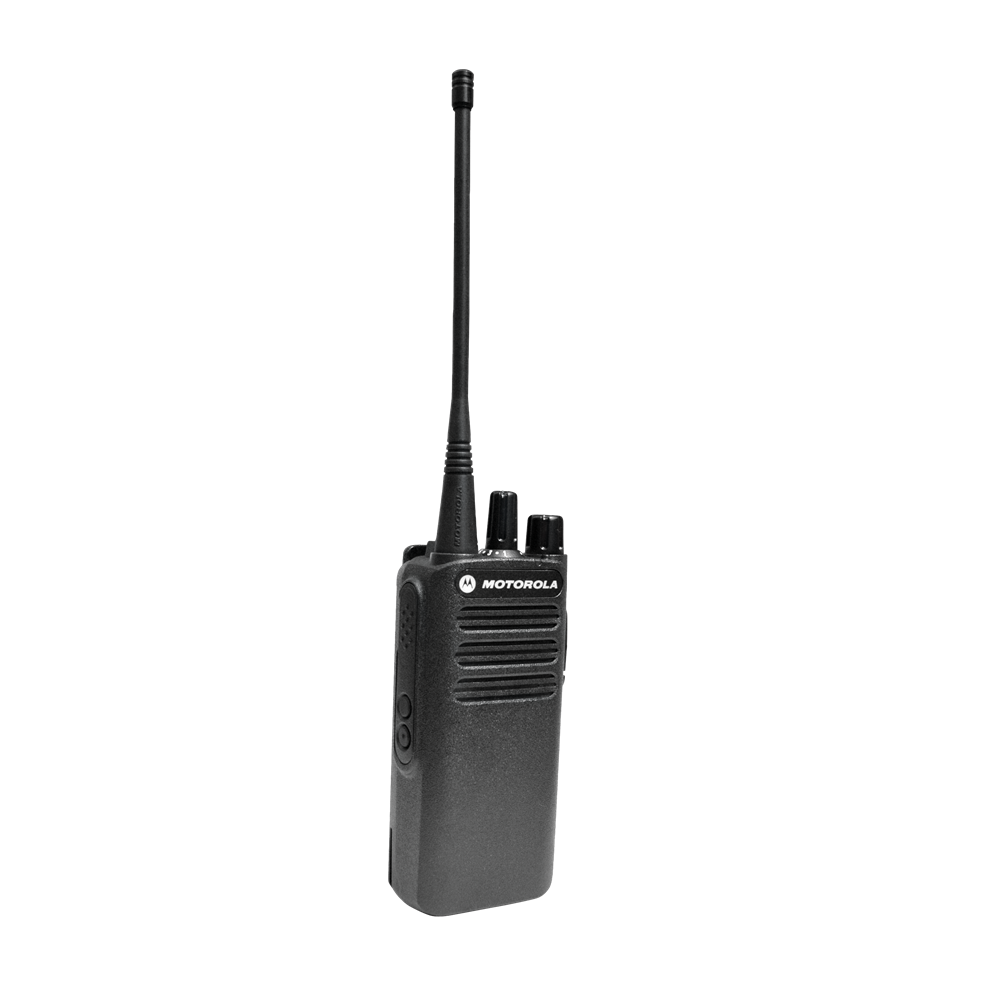

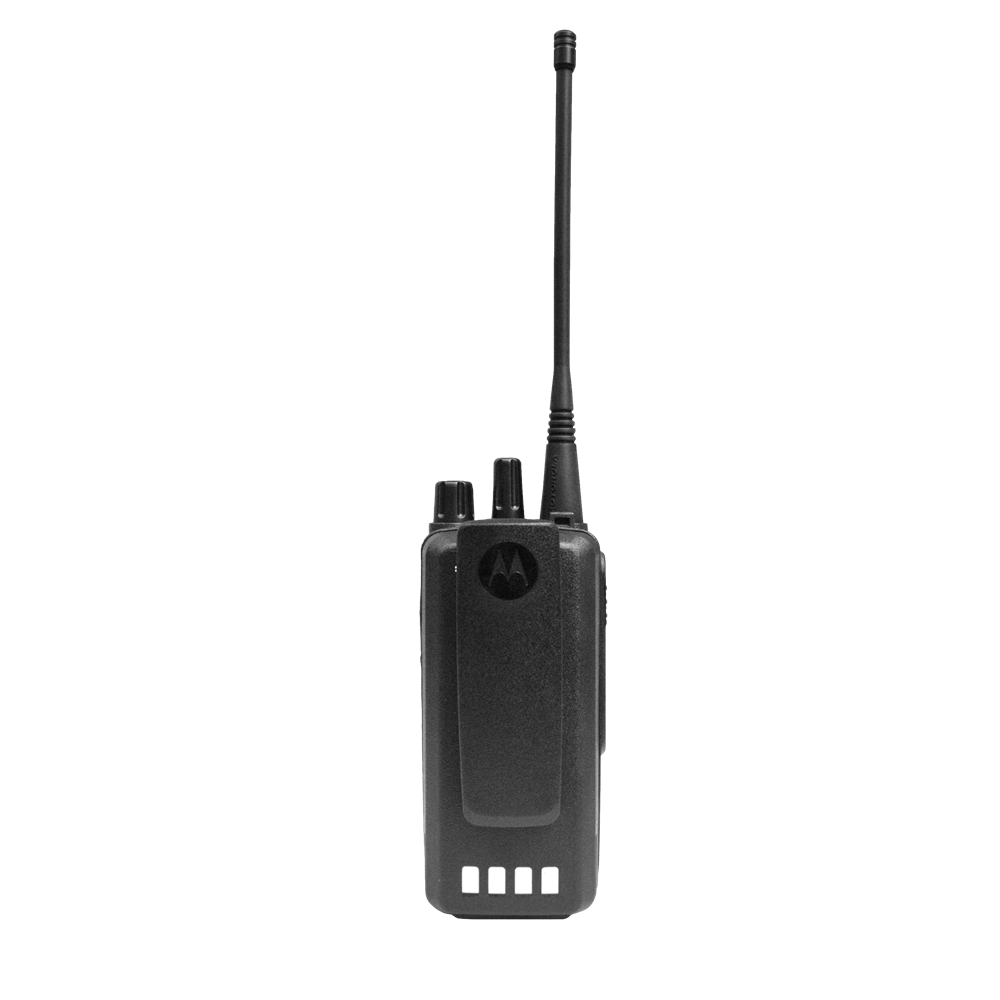

Mototrbo Handheld Walkie Talkie XIR C1200 UHF
Frequency Range: 136-174Mhz, 403-480Mhz
Storage Channel: 16
Weight: 276 g (Slim Li-Ion 1600mAH)
Water and Dust Intrusion: IP57
Dimensions: 120.0 x 55.0 x 34.7 mm
1.Features
• Analog / Digital Voice Communications
• Voice Announcement
• Dual Capacity Direct Mode
• Pre-programmed Text Messaging
• Transmit Interrupt (Decode only)
• Digital Mobile Radio (DMR) Standards Compliant
• IP54 Rated
• IP Site Connect
2.Specifications
Main Specifications | |
Channel Capacity | 16 |
Power Output | VHF:1-5W UHF:1-4W |
Frequency Range | VHF:136-174MHz UHF: 403-480MHz |
Dimensions (HxWxL) with 1400mAh NI-MH battery with 1600mAh Li-ion battery with 2200mAh Li-ion battery |
120.0 x 55.0 x 35.7 mm 120.0 x 55.0 x 34.7 mm 120.0 x 55.0 x 39.9 mm |
Weight with 1400mAh NI-MH battery with 1600mAh Li-ion battery with 2200mAh Li-ion battery | 341g 276g 281g |
Power Supply | 7.5V (theoretical data) ±20% |
Battery | |
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power | |
NiMH (1400mAh) Battery Li-ion (1600mAh) Battery Hi-Cap (2200mAh) Li-ion Battery | Analog: 9 hrs Digital: 12.5 hrs Analog: 10.5 hrs Digital: 13.5 hrs Analog: 14.5 hrs Digital: 18.5 hrs |
Receiver | |
Frequency | VHF:136-174MHz UHF: 403-480MHz |
Channel Spacing | 12.5kHz / 20kHz / 25kHz |
Frequency Stability (-30℃,+60℃,+25℃ Ref) | ±0.5 ppm |
Analogue Sensitivity (12dB SINAD) | 0.3uV / 0.22uV (typical) |
Digital Sensitivity (5% BER) | 0.3uV / 0.19uV (typical) |
Intermodulation | -70dB |
Adjacent Channel Selectivity | 45dB @ 12.5kHz / 70dB @ 20/25kHz |
Spurious Rejection | -70 dB |
Rated Audio | 0.5W |
Audio Distortion@ Rated Audio | 5% (3% typical) |
Hum and Noise | -40dB @ 12.5kHz / -45dB @ 20kHz/25kHz |
Audio Response | TIA603D |
Conducted Spurious Emisson | -57dBm |
Transmitter | |
Frequency | VHF:136-174MHz UHF: 403-480MHz |
Channel Spacing | 12.5kHz / 25kHz |
Frequency Stability (-30℃, +60℃, +25℃ Ref) | ±0.5 ppm |
Power Output | VHF:1-5W UHF:1-4W |
Modulation Limiting | ±2.5kHz @ 12.5kHz / ±4.0kHz @ 20kHz / ±5.0kHz @ 25kHz |
FM Hum and Noise | -40dB @ 12.5kHz / -45dB @ 20/ 25kHz |
Conducted/Radiated Emission | -36dBm<1GHz / -30dBm>1GHz |
Adjacent Channel Power | 60dB @ 12.5kHz / 70dB @ 20/ 25kHz |
Audio Response | TIA603D |
Audio Distortion | <3% (typical) |
Digital Vocoder Type | AMBE +2 |
Digital Protocol | ETSI TS 102 361-1, -2, -3 |
Environmental Specifications | |
Operating Temperature | -30℃ / +60 ℃ |
Storage Temperature | -40℃ / +85 ℃ |
Temperature Shock | Per MIL-STD |
Humidity | Per MIL-STD |
Water and Dust Intrusion | IEC60529-IP54 |
