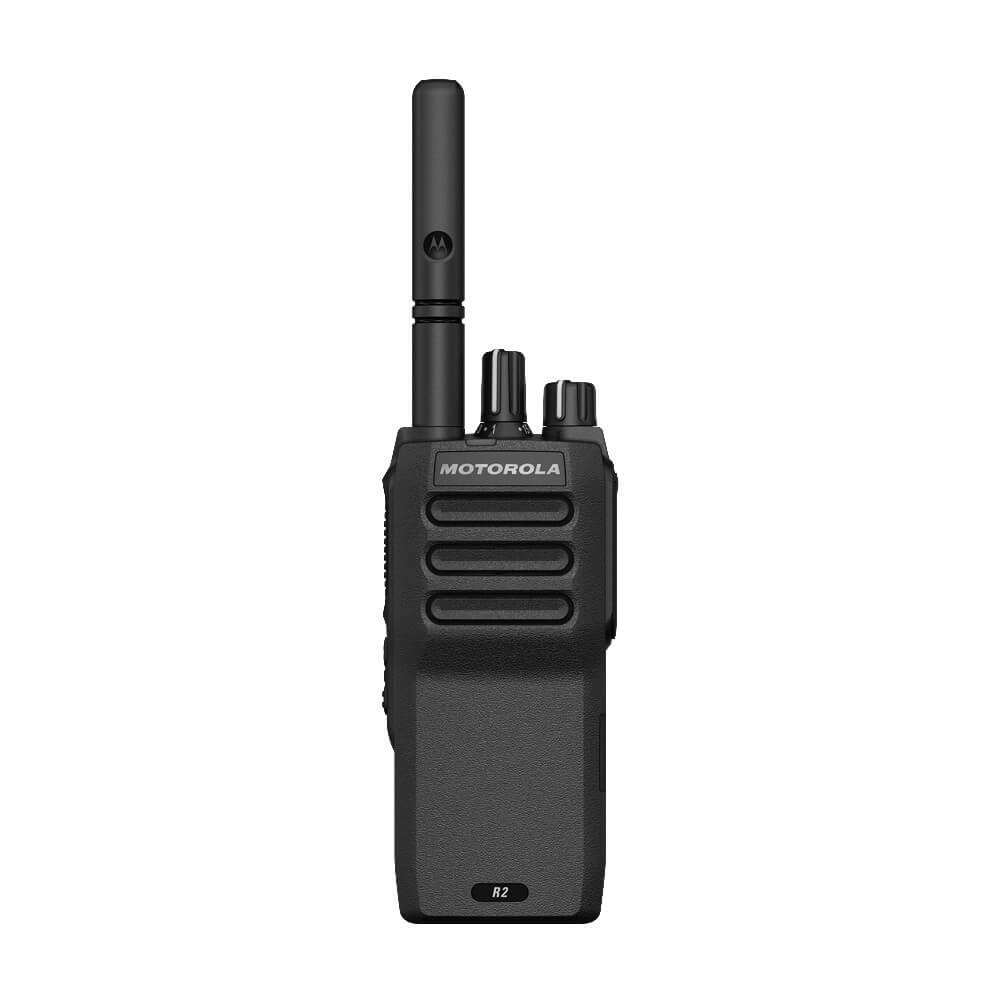

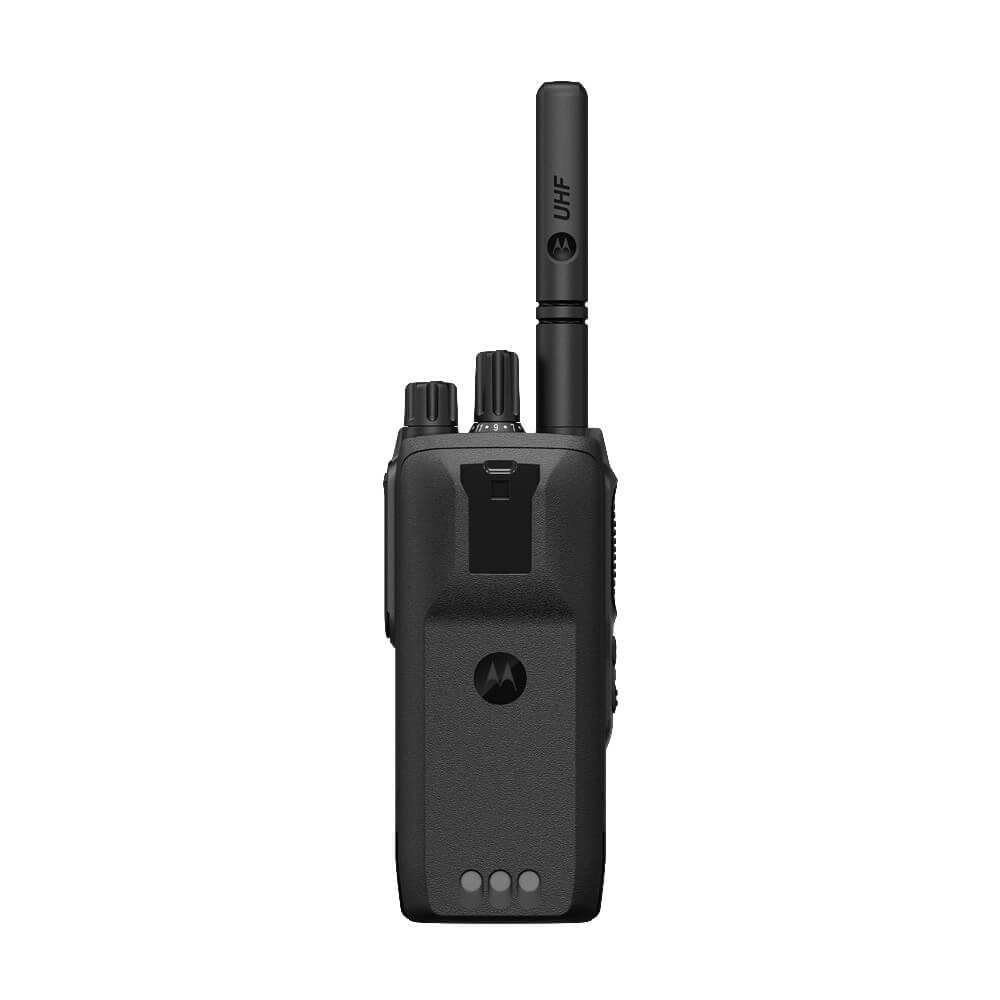

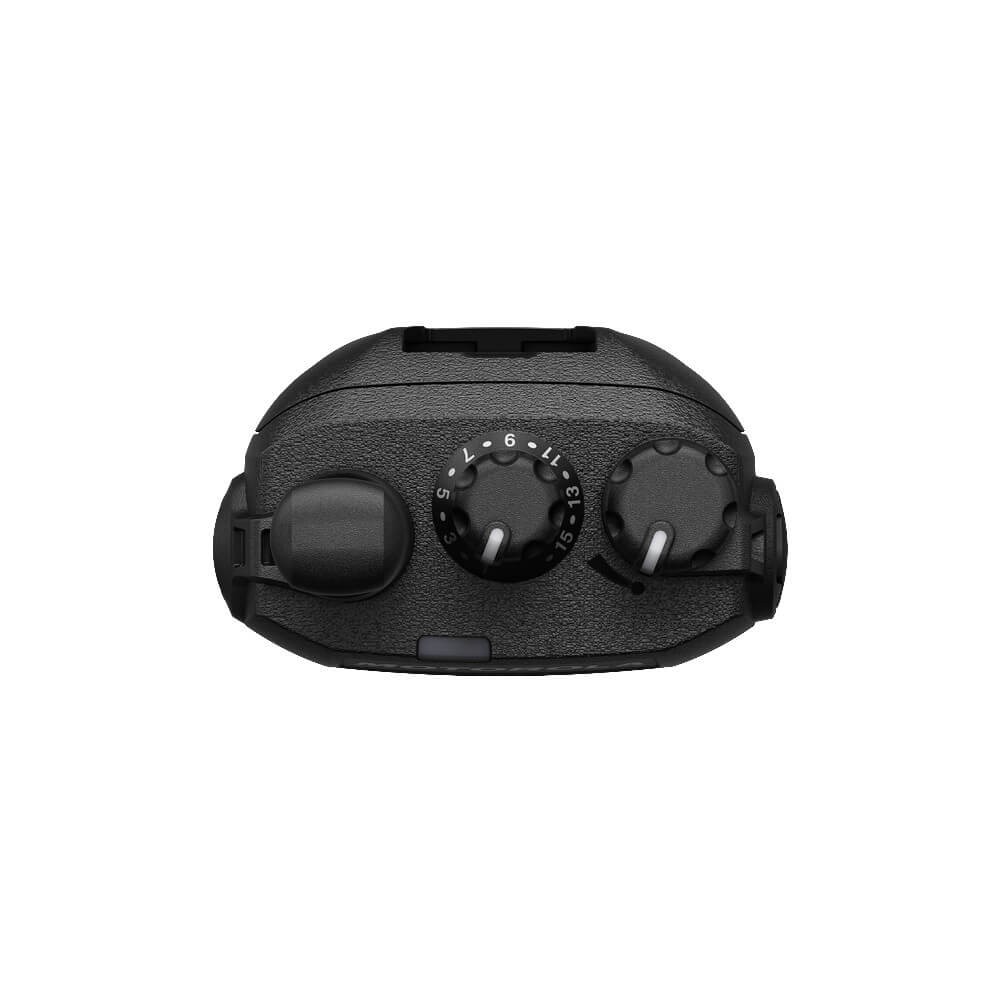

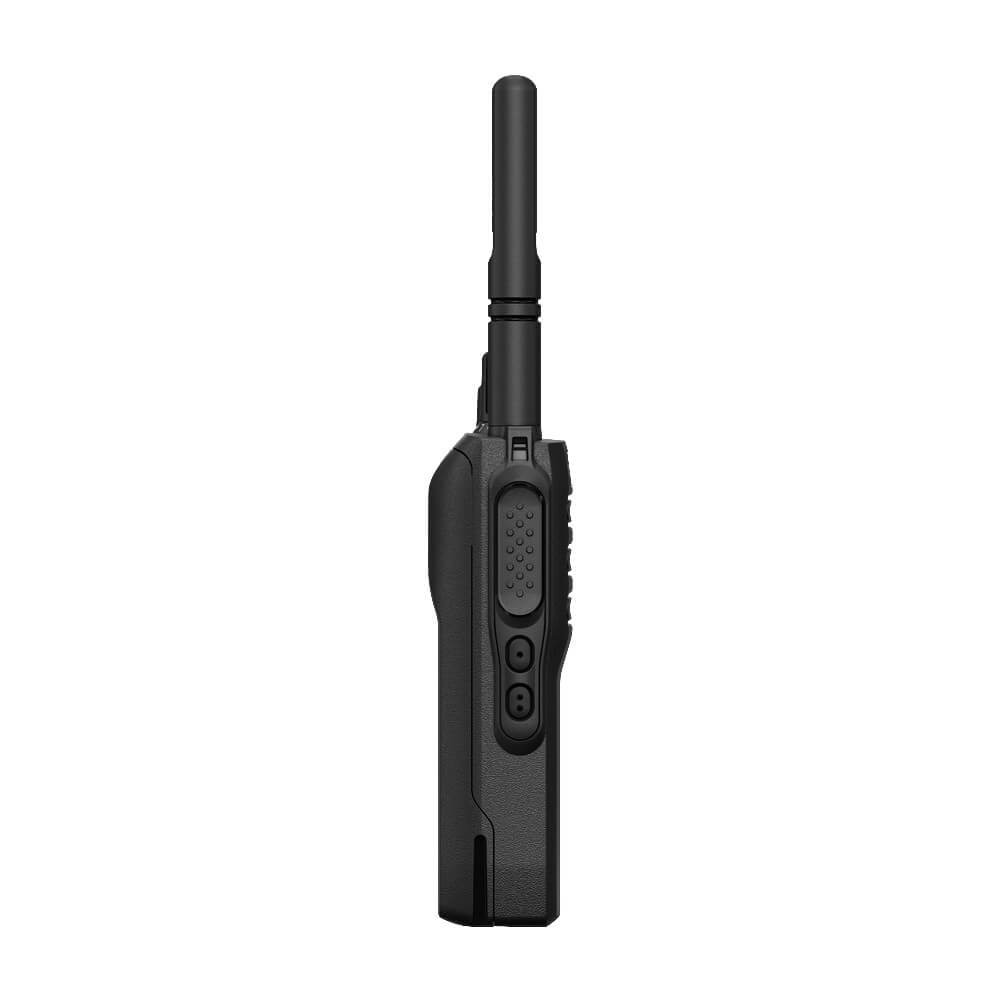

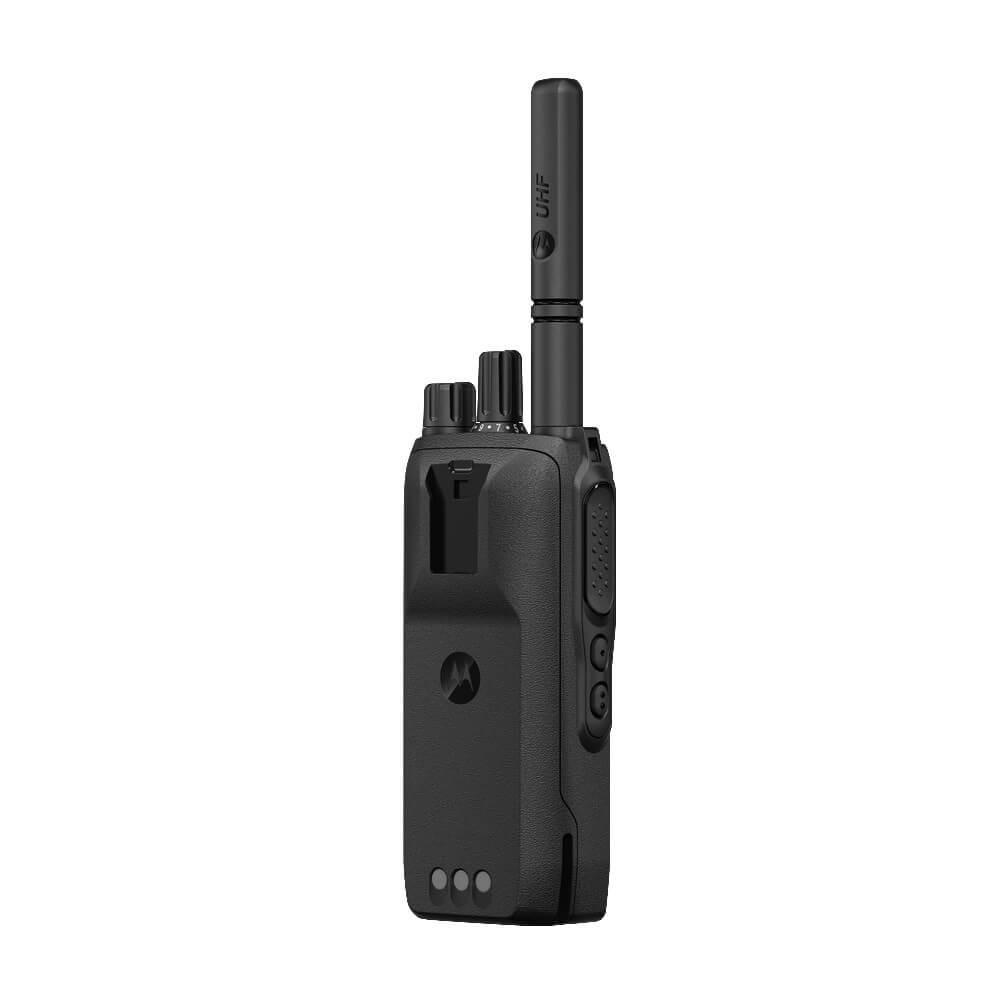

Mototrbo Handheld Two Way Radio R2

Frequency Range: 136-174MHz; 400-480MHz
Storage Channel: 64
Dimensions: 4.9 x 2.2 x 1.5 in
Weight (with standard battery):
10.1 oz
Dust and Water Intrusion: IP55

1. Features

• UHF, VHF

• 64 channels

• Single-site conventional

• Extended Range Direct Mode

• Dual Capacity Direct Mode

• Transmit Interrupt

• Dual priority scan

• Quick Call II / MDC1200 capable

• Secure Enhanced Linux operating system

• Enhanced privacy

• Radio disable/enable

• Remote monitor

• Voice announcement

• Loudness up to 101 phons

• SINC+ noise suppression

• Acoustic feedback suppression

• User selectable audio profiles

• Received audio leveling

• Sleek & ergonomic form factor

• Rugged to MIL-STD 810

• IP55 (dust and water ingress protection)

• 2 programmable buttons

• Home channel reminder

• Rental timer

2. Specifications

GENERAL SPECIFICATIONS
Channel Capacity	64
Frequency	136-174 MHz 400-480 MHz
Dimensions (HxWxL)	PMNN4598 high capacity battery 4.9 x 2.2 x 1.5 in
Dimensions (HxWxL)	PMNN4600 slim battery 4.9 x 2.2 x 1.3 in
Weight with battery:	PMNN4598 high capacity battery 10.1 oz
Weight with battery:	PMNN4600 slim battery 9.2 oz
Power Supply	7.5V (nominal)
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power
RECEIVER
Frequency	136-174 MHz 400-480 MHz
Channel Spacing	12.5 kHz/ 20/25 kHz
Frequency Stability	+/- 0.5 ppm
Analogue Sensitivity	0.18 µV (typical)
Digital Sensitivity	0.16 µV (typical)
Intermodulation	> 70 dB
Adjacent Channel Selectivity	60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz
Spurious Rejection	70 dB
Rated Audio	500 mW
Audio Distortion @ Rated Audio	3% (typical)
Hum and Noise	-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz
Audio Response	+1, -3 dB
Conducted Spurious Emission	-57 dBm
TRANSMITTER
Frequency	136-174 MHz; 400-480 MHz
Channel Spacing	12.5 kHz/ 20/25 kHz
Frequency Stability	+/- 1.5 ppm
Power Output
UHF	1-5 W
VHF	1-4W
Modulation Limiting	± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kH
Audio Response	+1, -3 dB
Audio Distortion	3%
Digital Vocoder Type	AMBE+2
Digital Protocol	ETSI-TS 102 361-1, 2 & 3
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	-30° C / +60° C
Storage Temperature	-40° C / +85° C
Temperature Shock	Per MIL-STD
Humidity	Per MIL-STD
Water and Dust Intrusion	IP55, MIL-STD
