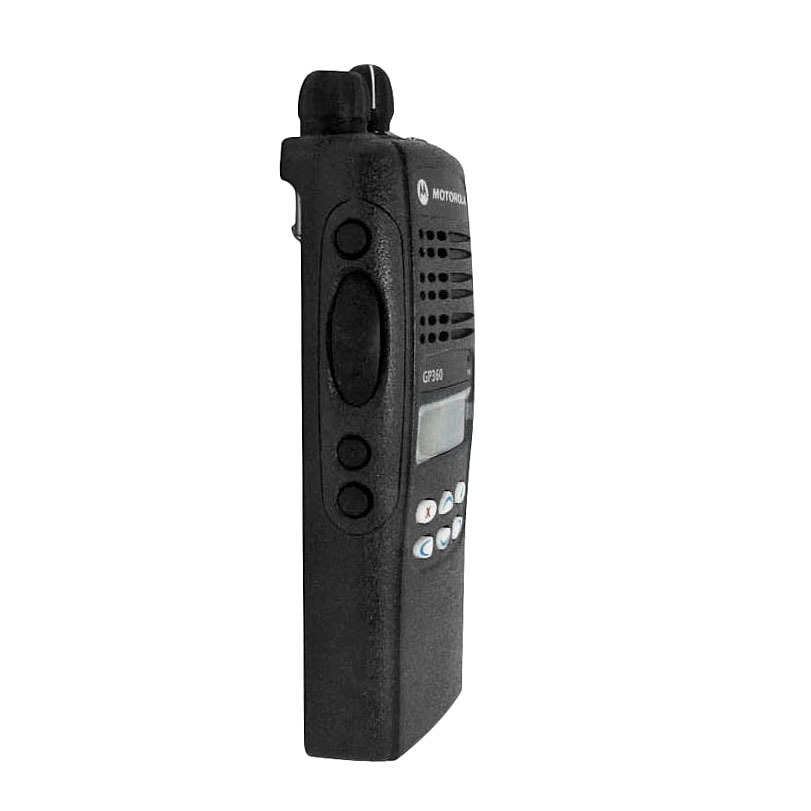

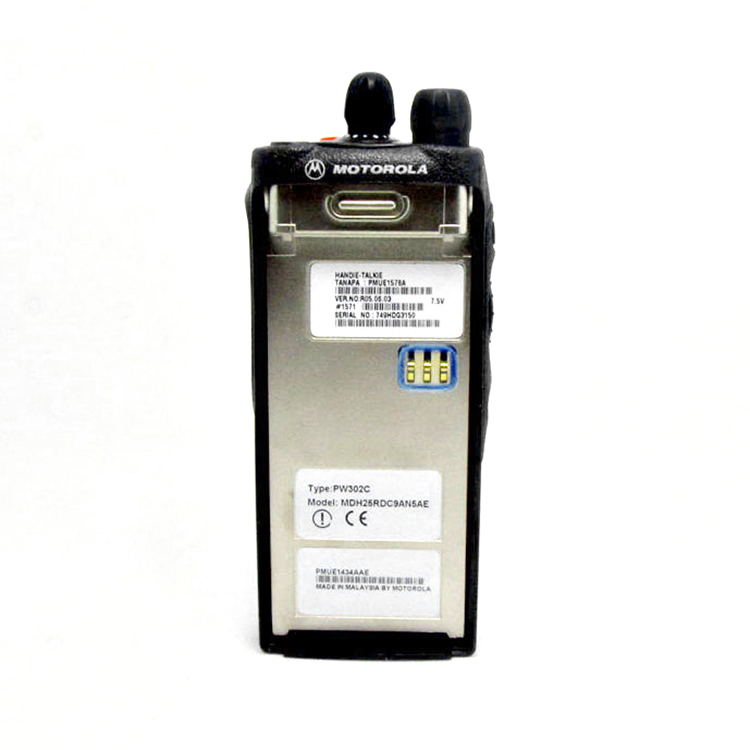

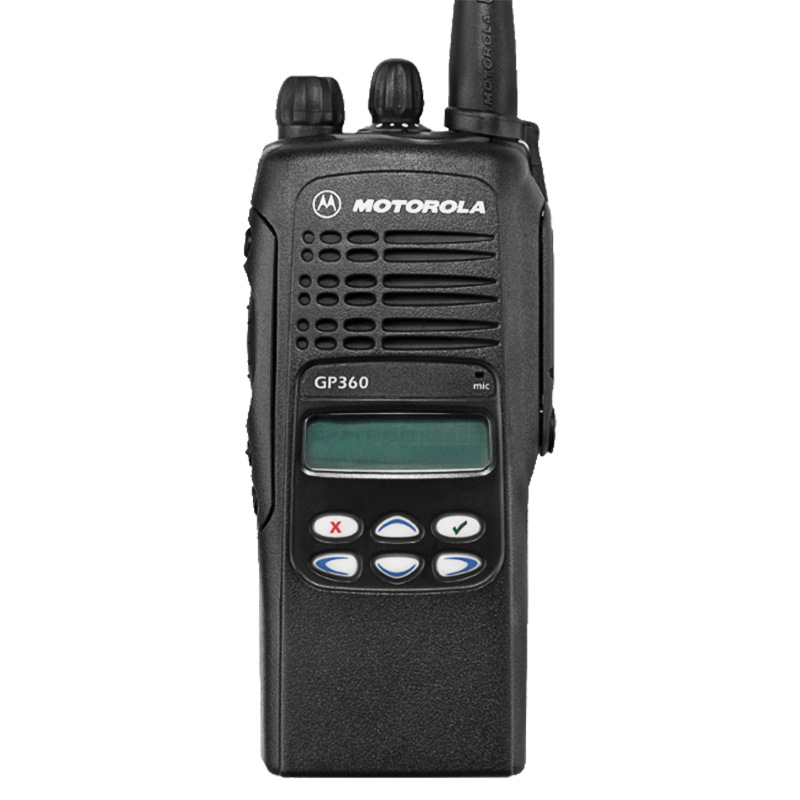

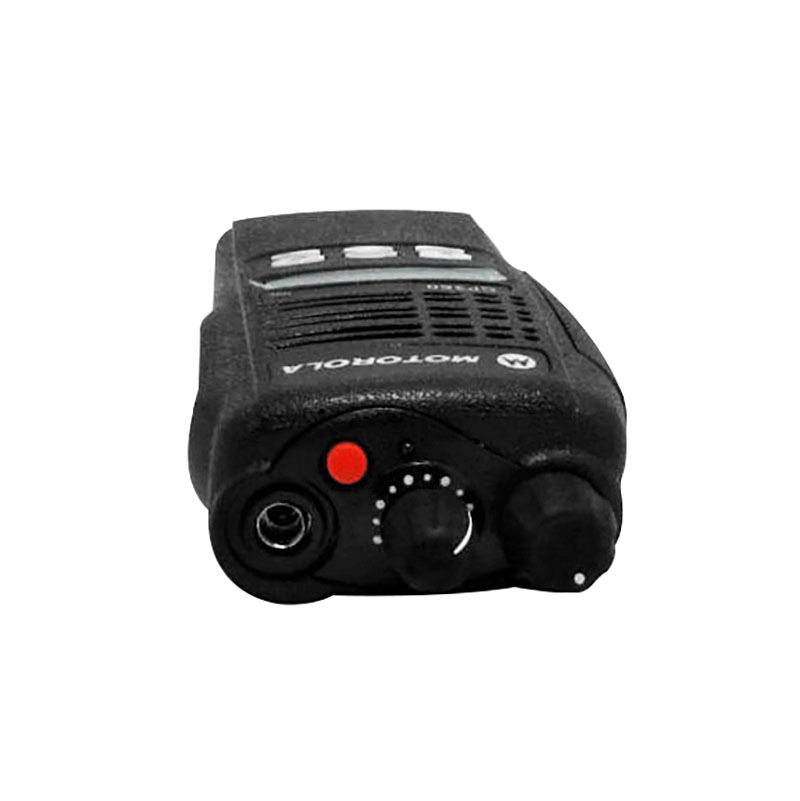

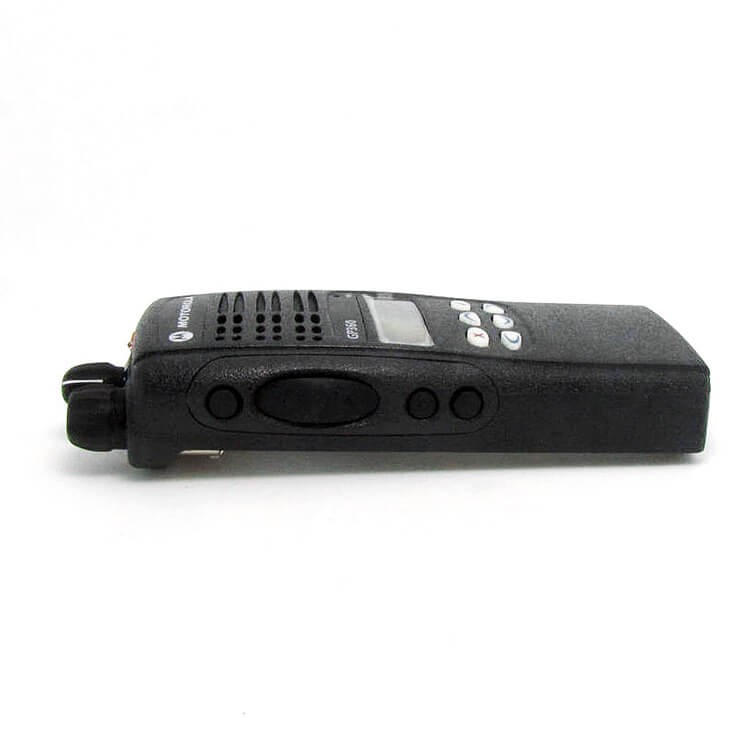

Motorola Two Way Radio VHF UHF Handle Talkie GP360
Frequency Range: VHF: 136-174 MHz UHF: 403-470 MHz
Storage Channel: 255
Dimensions: 137 x 57.5 x 37.5mm
Weight: 428g
1. Features
The GP360, one of the market-leading radios in Motorola’s Professional Series, is an effective feature-packed communication solution for any organisation. The radio offers broad functionality; an easy-to-use menu with full keypad for productivity, whilst security features protect users working alone or remotely.
Signalling
• Private Line™
• 5-tone selective signalling
Adaptable and versatile
• Option board expandability
• Easily programmed in the field to support additional features
Easy to use and set-up
• Programmable buttons for easy access to frequently used features
• Ruggedised design and compelling user interface
• Simple menus and alpha-numeric phonebook
• Full keypad allows easy telephone interconnect
Protecting users
• Emergency signalling
• Lone worker feature for staff working remotely
• Whisper mode for discreet communications
• Caller identification
Quality
• MIL Spec 810 compliant
• Meets IP54 environmental standards
• Passed Motorola Accelerated Life Test
• X-Pand™ voice compression technology
Efficiency
• Channel scanning
• Call management features include call forwarding, escalating incoming call alert and missed calls list
• Battery • Antenna • Belt clip • Accessory dust cover • User manual
Accessory options
A wide range of accessory options are available to customise your radio
• Audio accessories • Batteries and chargers • Carry options
2. Specifications
|
Model : GP360 |
|
|
GENERAL SPECIFICATIONS |
|
|
Channel Capacity |
255 |
|
Frequency |
136-174 MHz; 403-470MHz |
|
Dimension |
High capacity NiMH battery 137 x 57.5 x 37.5 |
|
Ultra high capacity NiMH battery 137 x 57.5 x 40.0 |
|
|
NiCD battery 137 x 57.5 x 40.0 |
|
|
Weight (gm) with: |
Standard high capacity NiMH battery 420 |
|
Ultra high capacity NiMH battery 500 |
|
|
NiCD battery 450 |
|
|
Li-Ion battery 350 |
|
|
Power Supply |
7.2V nominal |
|
|
|
|
Average Battery Life @5-5-90% Duty Cycle, with LiIon battery NiMH battery High Capacity LiIon battery |
High Power up to 11 hrs up to 9 hrs up to 16 hrs |
|
Sealing |
Passes rain testing per IP54 |
|
Shock & Vibration |
Diecast with impact resistance polycarbonate housing, Meets MIL-STD810C/D/E/F |
|
Dust & Humidity |
Weather resistant housing Meets MIL-STD810C/D/E/F |
|
RECEIVER |
|
|
Frequency Stability |
<-119 dBm (0.25uV) |
|
Adjacent Channel Selectivity |
> 70dB (25kHz), >65dB (12.5kHz) |
|
Intermodulation |
>70dB |
|
Spurious Rejection |
>70dB |
|
Audio Distortion |
<5% |
|
Hum and Noise |
>40dB |
|
Conducted Emission |
< -57dBm for below 1GHz < -47dBm for above 1GHz |
|
Audio Output @ <5% Distortion |
500mW (at 24 ohm) |
|
TRANSMITTER |
|
|
UHF |
High Power 5W Low Power 1W |
|
VHF |
High Power 4W Low Power 1W |
|
Modulation Limiting |
≤ 5khz (25kHz) |
|
≤ 2.5khz (12.5kHz) |
|
|
|
|
|
Spurs and Harmonics |
9kHz - 1GHz < -36dBm > 1GHz < -30dBm |
|
Frequency Stability (-30°C to +60°C) |
+/- 2.5ppm |
|
FM Hum & Noise |
> 40dB |
|
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Audio Distortion |
<5% |
