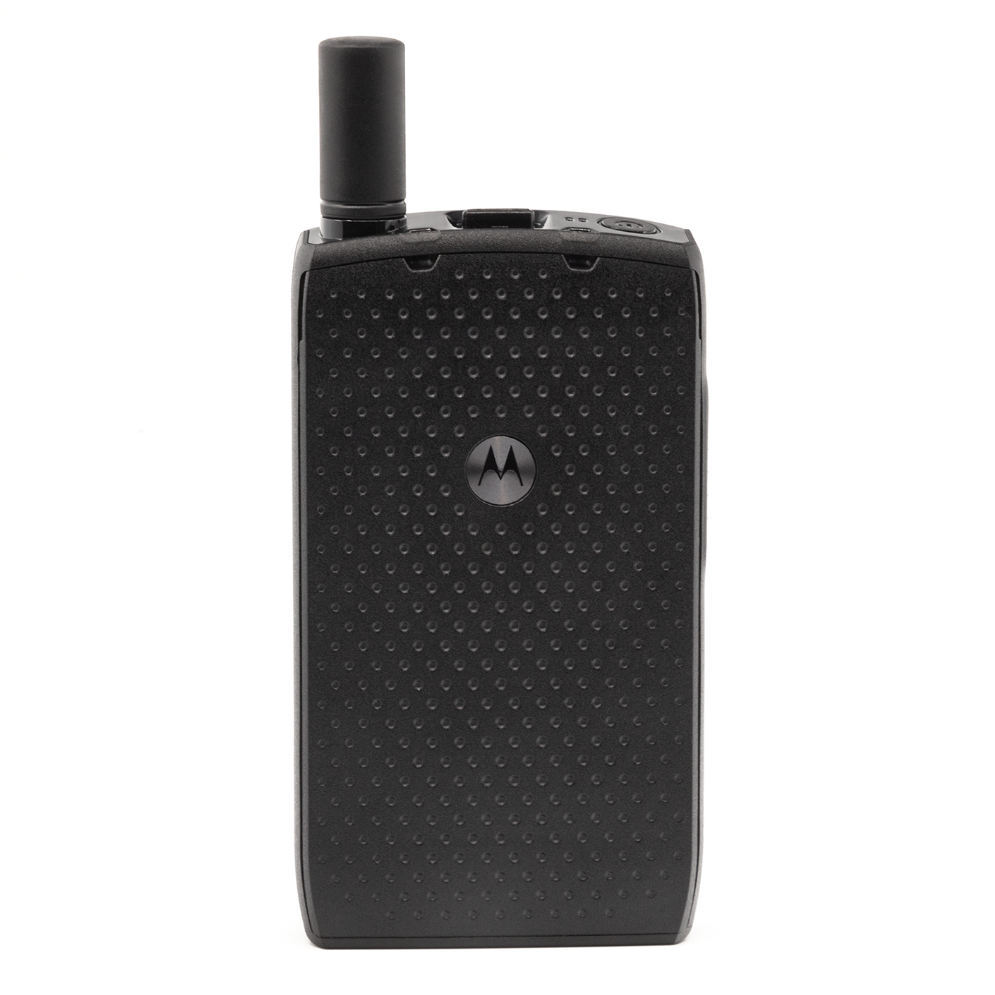

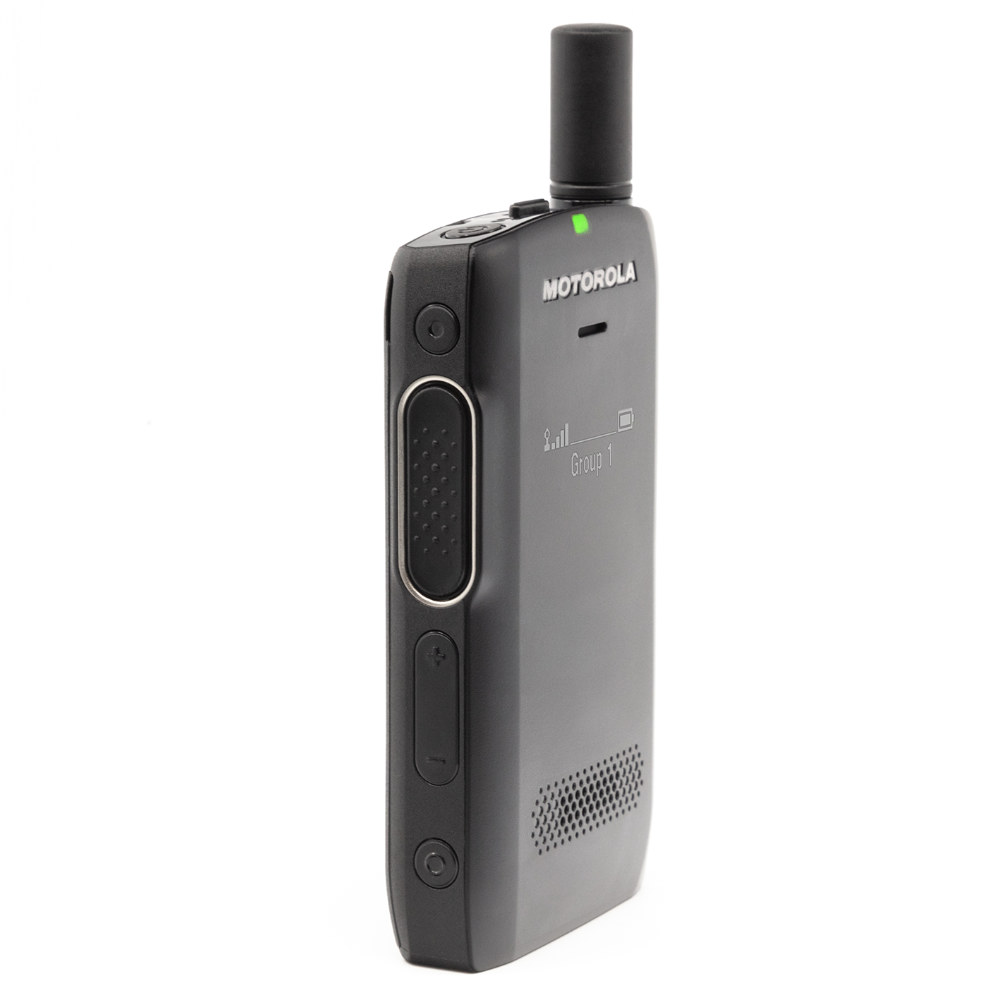

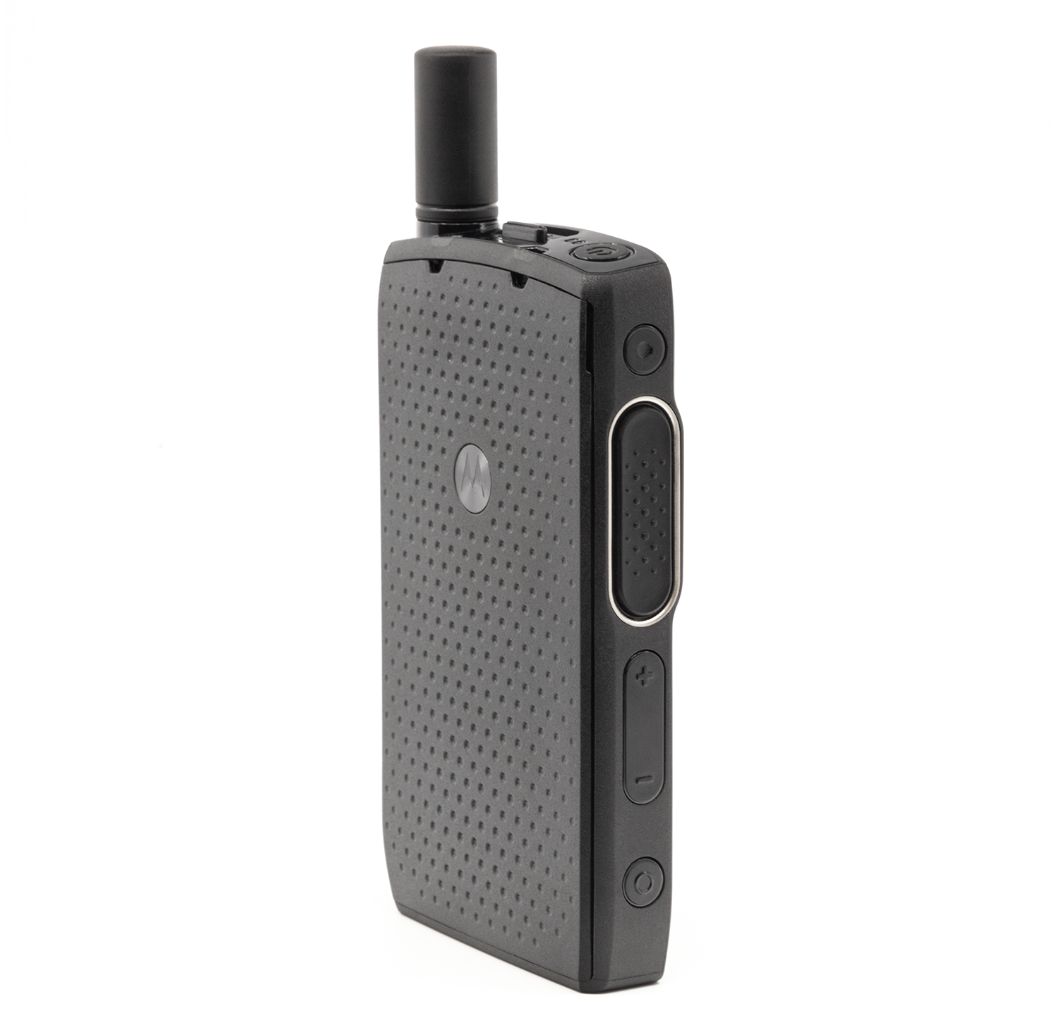

Motorola Small Tetra Two Way Radio ST7000
Frequency Bands: 380-430 MHz, 800 MHz
Dimensions: H x W x D 107 x 60 x 19mm
Weight : Including Battery and Antenna 173g
Dust and Water Ingress Protection: IP67
1. Features
The ST7000 provides customer-facing staff and senior officers with an effortless communications tool that allows them to increase productivity and keep their focus on what matters most - the customer or the situation and not the device.
The ST7000 small TETRA radio exceeds these needs with its compact and elegant form, simple user interface and clear audio. With a hybrid internal and external antenna system, the ST7000 is discreet and fits easily in a pocket. The touch sensitive buttons, integrated Bluetooth® 4.1 wireless technology, reversible USB-C connector for charging, and 3.5mm audio connector make the ST7000 a flexible, modern TETRA radio.
FEATURES
• Small and elegant design
• Simple and intuitive user interface
• Vibrate alert and haptic feedback for discreet use
• White OLED screen with touch UI for easy navigation
• Loud and clear audio
• 3.5 mm audio connector for maximum accessory compatibility

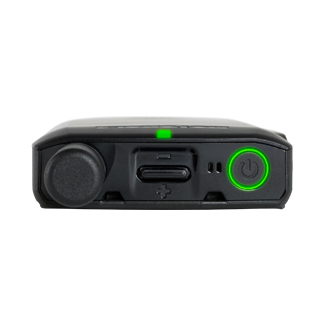

• Reversible USB-C connector for flexible charging and programming
• Enhanced coverage with 1.8W transmit power
• Durable with IP54 and MIL-STD 810 F/G rating
• Long-life battery with up to 20 hours of use
• Integrated Bluetooth 4.1 wireless technology
• GPS and GLONASS for location services
2. Specifications
|
GENERAL SPECIFICATIONS |
|
|
Frequency |
380-430 MHz, 800 MHz |
|
Dimensions (HxWxL) |
107 x 60 x 19mm |
|
Weight with battery: |
173g |
|
Power Supply |
3.7 V (Nominal) |
|
Battery |
Removable 2300 mAh IMPRES Li-Ion |
|
RECEIVER |
|
|
Frequency |
380-430 MHz, 800 MHz |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 0.5 ppm |
|
Analogue Sensitivity |
0.30 uV (12 dB SINAD);0.22 uV
(typical) (12 dB SINAD); |
|
Digital Sensitivity |
5% BER: 0.3 uV |
|
Intermodulation |
70 dB |
|
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
|
Spurious Rejection |
70 dB |
|
Rated Audio |
500 mW |
|
Audio Distortion @ Rated Audio |
3% (typical) |
|
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Conducted Spurious Emission |
-57 dBm |
|
TRANSMITTER |
|
|
Frequency |
136-174 MHz;403-512 MHz |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 1.5 ppm (DP3600) |
|
Power Output |
|
|
UHF |
1-5 W |
|
VHF |
1-4W |
|
4FSK Digital Modulation |
12.5 kHz Data: 7K60F1D and 7K60FXD 12.5 kHz Voice: 7K60F1E and 7K60FXE Combination of 12.5 kHz Voice and Data: 7K60F1W |
|
FM Hum and Noise |
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
|
Conducted / Radiated Emission |
-36 dBm < 1 GHz;-30 dBm > 1 GHz |
|
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Audio Distortion |
3% |
|
Digital Vocoder Type |
AMBE+2 |
|
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Operating Temperature |
-30° C / +60° C |
|
Storage Temperature |
-40° C / +85° C |
|
Temperature Shock |
Per MIL-STD |
|
Humidity |
Per MIL-STD |
|
Water and Dust Intrusion |
IP67, MIL-STD |
|
Bluetooth
|
|
|
Version |
Bluetooth 2.1 +EDR, Bluetooth 4.1, Bluetooth Smart (BTLE) |
|
Profiles Supported |
Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. (SPP), Motorola fast push-to-talk. |
|
Devices Supported |
Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
|
Range |
Class 2, 10 m |
|
LOCATION SERVICE |
|
|
Constellations Supported |
GPS and GLONASS |
|
Tracking Sensitivity |
-163 dBm |
|
Protocols |
ETSI LIP, LRRP |
