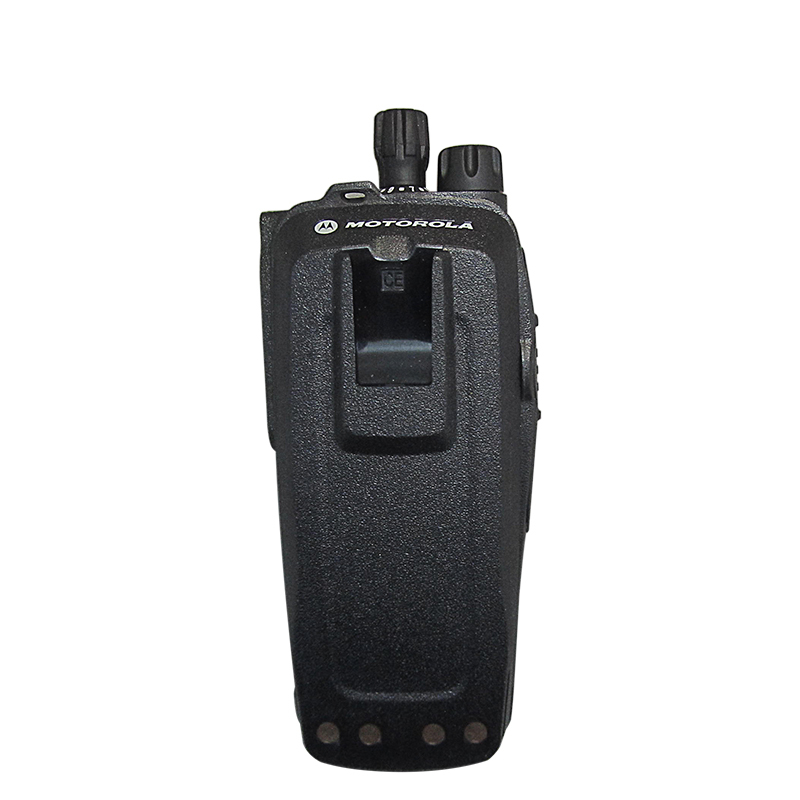

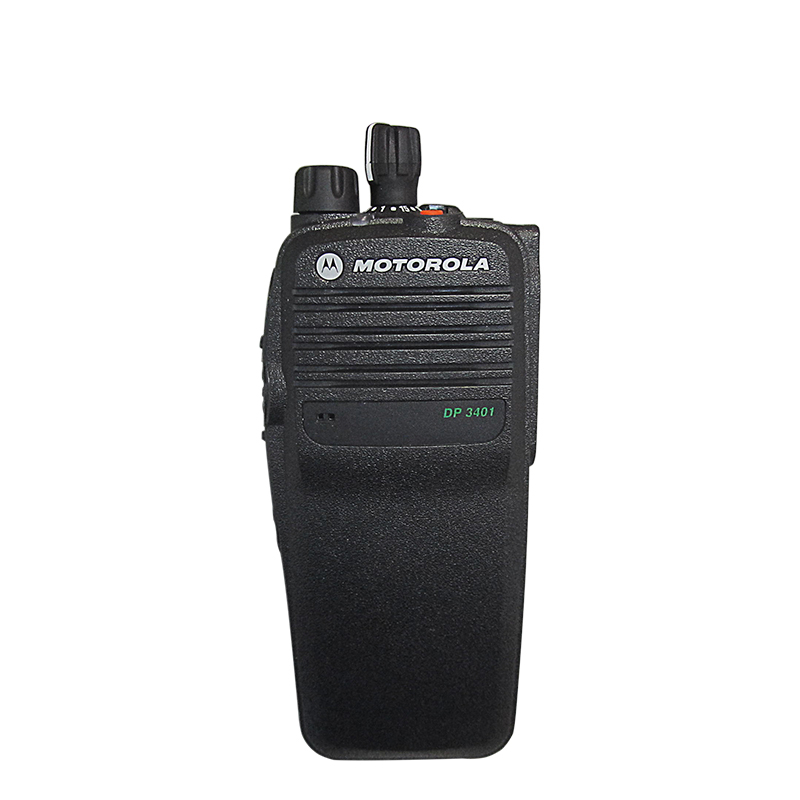

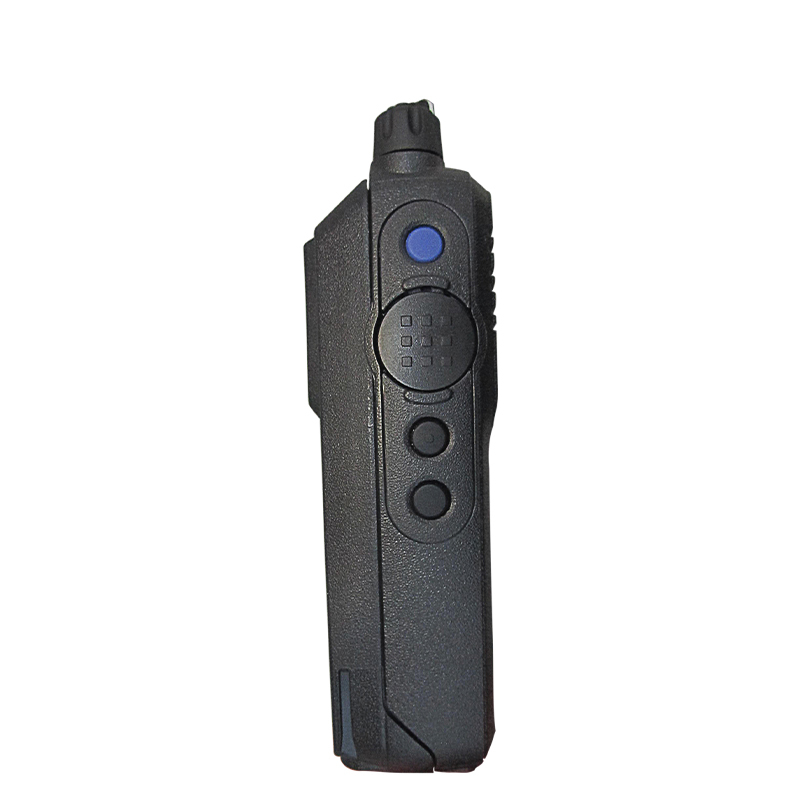

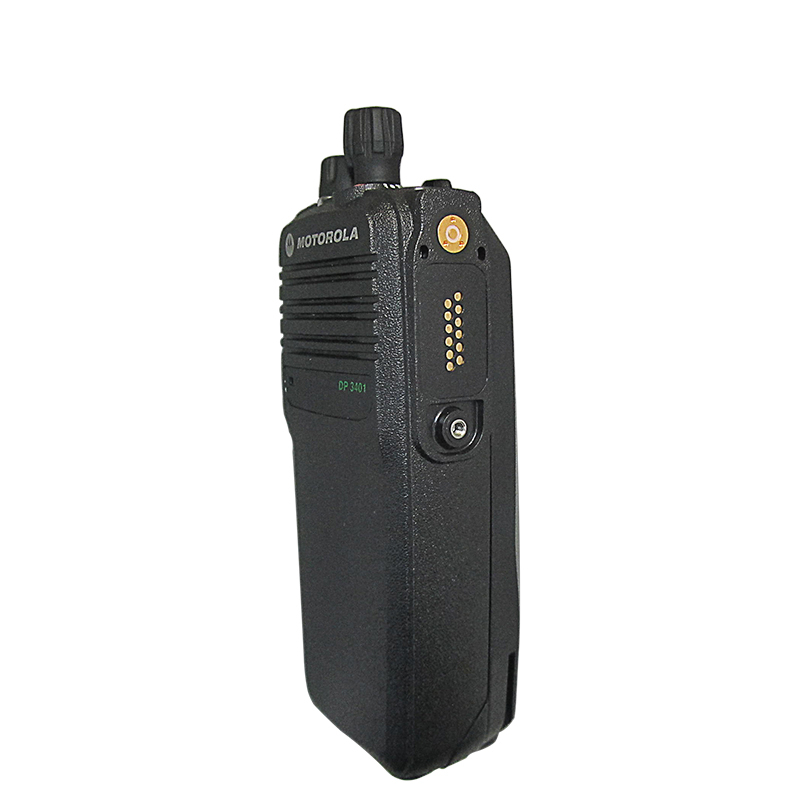

Motorola Radio Communication Digital GPS Walkie Talkie DP3401

Frequency Range: VHF136-174MHZ; UHF 403-470MHz, 450-512 MHz
Storage Channel: 32
Dimensions: 131.5 x 63.5 x 35.2 mm
Weight: 360g

EMAIL

1. Features


• Integrates Voice and Data into one device to increase your operational efficiency and support integrated applications including MOTOTRBO Text Messaging Services. Also features an integrated GPS module for use with third-party location tracking applications.

• Uses Time-Division Multiple-Access (TDMA) digital technology to provide Twice The Calling Capacity (as compared to analog or FDMA radios) for the price of one frequency license. A second call doesn’t require a second repeater, saving you equipment costs.

• In digital mode, provides Clearer Voice Communications throughout the coverage area, as compared to analog radios, rejecting static and noise.

• Offers Enhanced Battery Life. Digital TDMA   two-way portable radios can operate up to 40 percent longer between recharges compared to typical analog radios.

• Meets Demanding Specifications – IP57 for submersibility in water (portable models), U.S. Military 810 C, D, E and F, and Motorola standards for durability and reliability.

• Is Intrinsically Safe*, when purchased and equipped with an FM battery, and can be used in locations where flammable gas, vapors or combustible dust may be present.

• Utilizes Motorola’s State-Of-The-Art IMPRES™ Technology in batteries, chargers and audio accessories, providing longer talk time and clearer audio delivery.

• Features the Transmit Interrupt Suite* – voice interrupt, remote voice dekey, emergency voice interrupt – to help prioritize critical communication exactly when needed.

• The IP Site Connect* digital solution uses the Internet to extend coverage of your MOTOTRBO communication system to users anywhere in the world for dramatically improved customer service and increased productivity.

• Capacity Plus* is a scalable, singlesite digital trunking solution that can expand the capacity of your MOTOTRBO communication to over a thousand radio users without adding new frequencies.

• Motorola’s Application Developer Program enables the development of customized data applications that adapt MOTOTRBO radios to meet the unique needs of your business.



2. Specifications

General Specifications

Frequency Range

136-174MHZ /  403-470MHZ /450-512 MHz

Channel Capacity

 32

Frequency Spacing

12.5/20/25 KHz

Power supply

7.4V

battery capacity

2000mAh Li-ion battery

Frequency Stability

±0.5ppm

Operating Temperature Range

-30 °C to + 60°C

Dimension (L×W×H)

 135*55*38mm

Weight

 400g

Transmitter and receiver

Output power

UHF:1W / 5W  VHF: 1W / 4W

FM Hum and Noise

40dB @ 12.5KHz; 45dB @ 25KHz

Modulation Limited

±2.5KHz @ 12.5KHz;  ±5.0KHz @  25KHz

Audio Distortion

3%

Conducted / Radiated Emission

-36dBm <1GHz
-30dBm >1GHz

Adjacent Channel Power

-60 dB @ 12.5 kHz

-70 dB @  25 kHz
