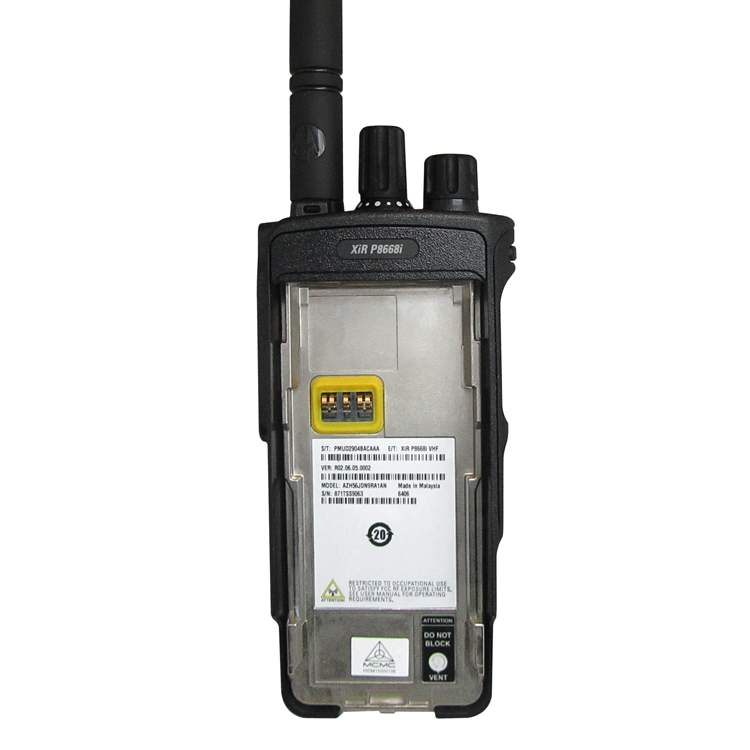

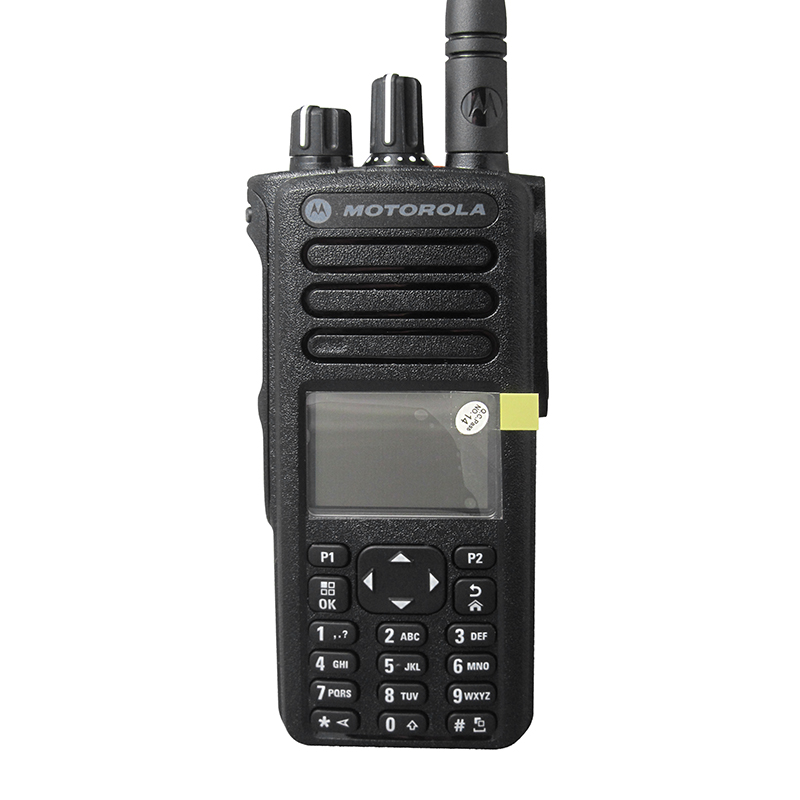

Motorola New Generation Mototrbo WIFI Radio XIR P8668i VHF
Frequency Range: 136-174MHz 403-527MHz
Storage Channel: 1000
Dimensions: 130 x 55 x 36 mm
Weight (with standard battery): 315g
1. Features
With this dynamic evolution of MOTOTRBO digital two-way radios, you’re better connected, safer and more productive. The XiR P8600i Series is designed for the skilled professional who refuses to compromise. With high performance integrated voice and data, and advanced features for efficient operation, these next-generation radios deliver complete connectivity to your organisation.
CONNECTED
The MOTOTRBO XiR P8600i Series is a family of DMR-standard digital radios that delivers operations-critical voice and communications. Bluetooth® audio lets you talk without wires, integrated Wi-Fi enables remote software updates, and indoor and outdoor location-tracking capabilities give you total visibility of your resources. With support for trunking as well as legacy analogue technology, you can keep your organisation connected as it grows.
SAFE
Safeguard your staff with responsive push-to-talk technology. The prominent orange emergency button on XiR P8600i Series radios summons help with one touch, using Transmit Interrupt to clear a channel when necessary. An integrated accelerometer senses if you’ve fallen, and can initiate a call for assistance. The radio is tested tough to military standards and is waterproof (IP68 Capable). It won’t let you down.
PRODUCTIVE
Text messaging and Work Order Ticketing simplify complex communications, and data capabilities support advanced applications. Featuring a powerful audio amplifier, these radios deliver loud, clear speech, with industrial noise cancellation for better intelligibility. The latest energy technology provides the battery option which delivers up to 27 hours of battery life for 3-shift working, and an improved receiver boosts range further.
WHAT’S NEW IN THESE NEXT GENERATION RADIOS
• Integrated accelerometer for optional Man Down
• Bluetooth® 4.0
• Indoor location tracking
• Multi-constellation GPS for increased location accuracy
• Integrated Wi-Fi
• Over-the-air software updates
• Enhanced audio quality
• Improved expandability
• Better battery life (up to 28 hrs)
• Better range
• Better waterproofing (IP68 Capable)
CONNECTION
• VHF Band, 5 W • UHF Band, 4 W • 350 Band, 4 W
• FKP Models: Colour screen, full keypad, 1000 channels
• LKP Models: Colour screen, limited keypad, 1000 channels
• NKP models: No screen or keypad, 32 channels
• Analogue and Digital
• Voice and Data Integrated Wi-Fi
• Canned Text Messaging
• Freeform Text Messaging (FKP models)
• Multi-constellation GNSS
• High Efficiency GNSS
• Event-Driven Location Update
• Bluetooth Audio
• Bluetooth Data Bluetooth Permanent Discovery Mode Bluetooth Indoor Location Tracking • Voice Announcement Text to Speech Option Board
• Home Channel Reminder
AUDIO
• Intelligent Audio
• IMPRES Audio SINC+ Noise Cancellation
• Acoustic Feedback Suppressor
• Microphone Distortion Control
• User-Selectable Audio Profiles
• Switch Speaker
• Trill Enhancement
CUSTOMISATION
• Wide Range of Accessories Multi-Button PTT
• 5 Programmable Buttons (3 for NKP model)
• Emergency Button
MANAGEMENT
Radio Management Over-the-Air Programming Over-the-Air Software Update IMPRES Battery Management Over-the-Air Battery Management
SAFETY
• Integrated Accelerometer Man Down
• Lone Worker AES Encryption
• Transmit Interrupt
• Emergency
• Emergency Search Tone
• Remote Monitor
• Radio Disable / Enable HazLoc Certification
• IP68 Capable
• Rugged to MIL-STD 810
SYSTEMS
• Dual Capacity Direct Mode
• Conventional
• IP Site Connect Capacity Plus Single Site Capacity Plus Multi Site (formerly known as Linked Capacity Plus) Capacity Max Connect Plus
2. Specifications
|
GENERAL SPECIFICATIONS |
|
|
Channel Capacity |
1000 |
|
Frequency |
136-174 MHz 403-527 MHz |
|
Dimensions (HxWxL) |
with NiMH Battery 1400Mah 130.3 x 55.2 x 38.7 mm |
|
IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2 x 35.8 mm |
|
|
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x 55.2 x 41.1 mm |
|
|
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3 x 55.2 x 41.1 mm |
|
|
Weight with battery: |
with NiMH Battery 1400Mah 425.5 g (15.01 oz) |
|
IMPRES Li-ion Slim (1600mAh) battery 335.5 g (11.83 oz) |
|
|
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54 oz) |
|
|
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5 g (12.89 oz) |
|
|
Power Supply |
7.5 V (Nominal) |
|
Average battery life at 5/5/90 duty cycle with battery saver enabled in carrier squelch and transmitter in high power |
|
|
IMPRES LiIon Std Battery |
Analogue: 8 hrs/Digital: 11.8 hrs |
|
IMPRES LiIon HiCap Battery |
Analogue: 11.5 hrs/Digital: 17 hrs |
|
IMPRES FM LiIon Battery |
Analogue: 12.3 hrs/Digital: 18.1 hrs |
|
NiMH Battery |
Analogue: 7 hrs/ Digital: 10.2 hrs |
|
RECEIVER |
|
|
Frequency |
136-174 MHz;403-527 MHz |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 0.5 ppm |
|
Analogue Sensitivity |
0.30 uV (12 dB SINAD);0.22 uV
(typical) (12 dB SINAD); |
|
Digital Sensitivity |
5% BER: 0.3 uV |
|
Intermodulation |
70 dB |
|
Adjacent Channel Selectivity |
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz |
|
Spurious Rejection |
70 dB |
|
Rated Audio |
500 mW |
|
Audio Distortion @ Rated Audio |
3% (typical) |
|
Hum and Noise |
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Conducted Spurious Emission |
-57 dBm |
|
TRANSMITTER |
|
|
Frequency |
136-174 MHz;403-512 MHz |
|
Channel Spacing |
12.5 kHz/ 20/25 kHz |
|
Frequency Stability |
+/- 1.5 ppm (DP3600) |
|
Power Output |
|
|
UHF |
1-5 W |
|
VHF |
1-4W |
|
Modulation Limiting |
+/- 2.5 kHz @ 12.5 kHz |
|
+/- 4 kHz @ 20 kHz |
|
|
+/- 5.0 kHz @ 25 kHz |
|
|
FM Hum and Noise |
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz |
|
Conducted / Radiated Emission |
-36 dBm < 1 GHz;-30 dBm > 1 GHz |
|
Adjacent Channel Power |
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz |
|
Audio Response |
+1, -3 dB |
|
Audio Distortion |
3% |
|
Digital Vocoder Type |
AMBE+2 |
|
Digital Protocol |
ETSI-TS 102 361-1, 2 & 3 |
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Operating Temperature |
-30° C / +60° C |
|
Storage Temperature |
-40° C / +85° C |
|
Temperature Shock |
Per MIL-STD |
|
Humidity |
Per MIL-STD |
|
Water and Dust Intrusion |
IP57, MIL-STD |
|
GPS |
|
|
Accuracy specs are for long-term tracking (95th percentile values > 5 satellites visible at a nominal -130 dBm signal strength) |
|
|
TTFF (Time To First Fix) Cold Start |
< 2 minutes |
|
TTFF (Time To First Fix) Hot Start |
< 10 seconds |
|
Horizontal Accuracy |
< 10 meters |
|
Bluetooth |
|
|
Version |
Supports Bluetooth? 2.1 + EDR Specification |
|
Profiles Supported |
Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola fast push-to-talk. |
|
Devices Supported |
Radio supports 1 Bluetooth audio accessory and 1 Bluetooth data device simultaneously |
|
Range |
Class 2, 10 metres |
3. Shipping
4. Payment Terms
EEC. accept online payment method--Paypal, which takes data encryption technology to make Paypal pay safe enough, so customers no need to worry about the private infomation betraied. And Paypal is convenient for customers and sellers to trade. Seller could send Invoice first to customer for making payment. To avoid customers do not know how to make payment.
Offline payment also be accepted -- Telegraphic Transfer (TT), Western Union, MoenyGram which is convenient, reasonable, simple and Global.
