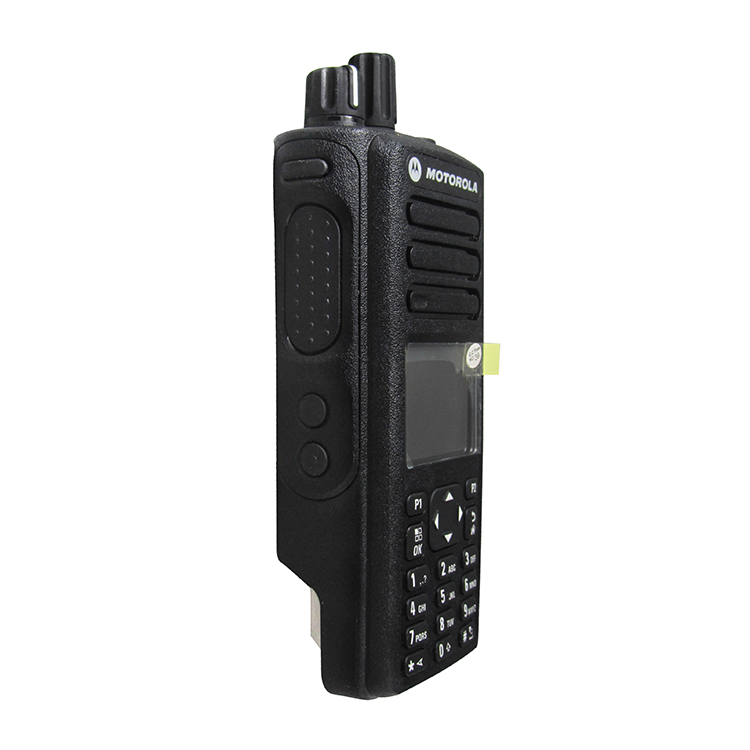

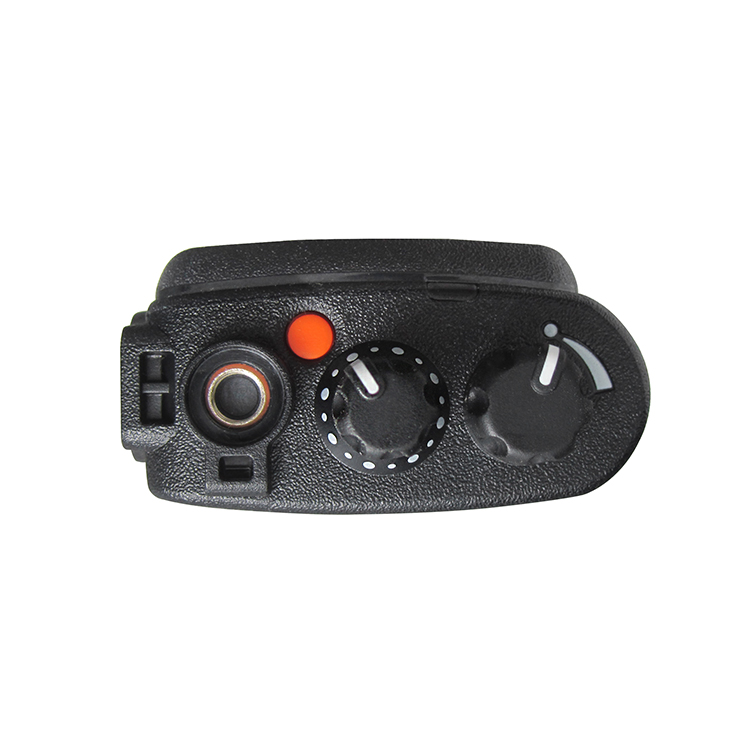

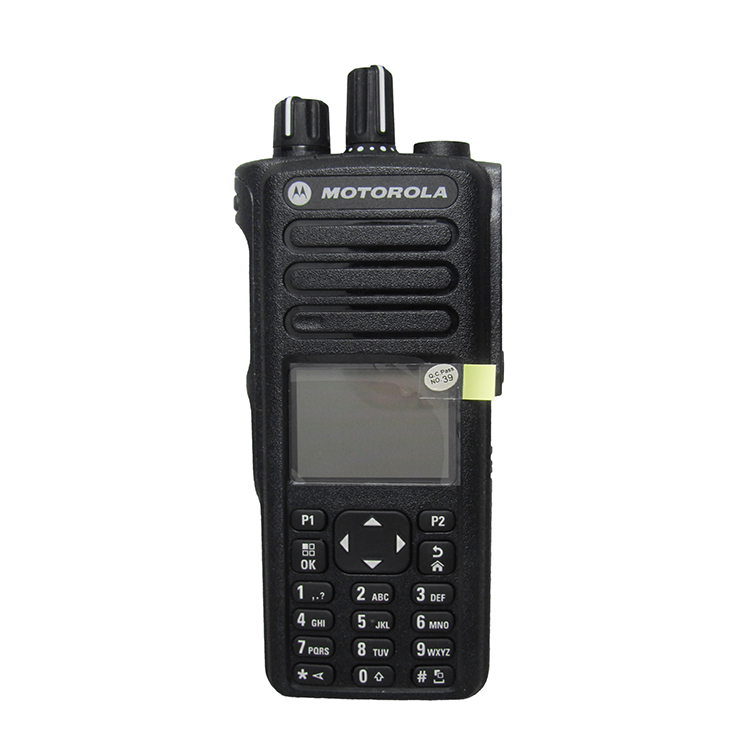

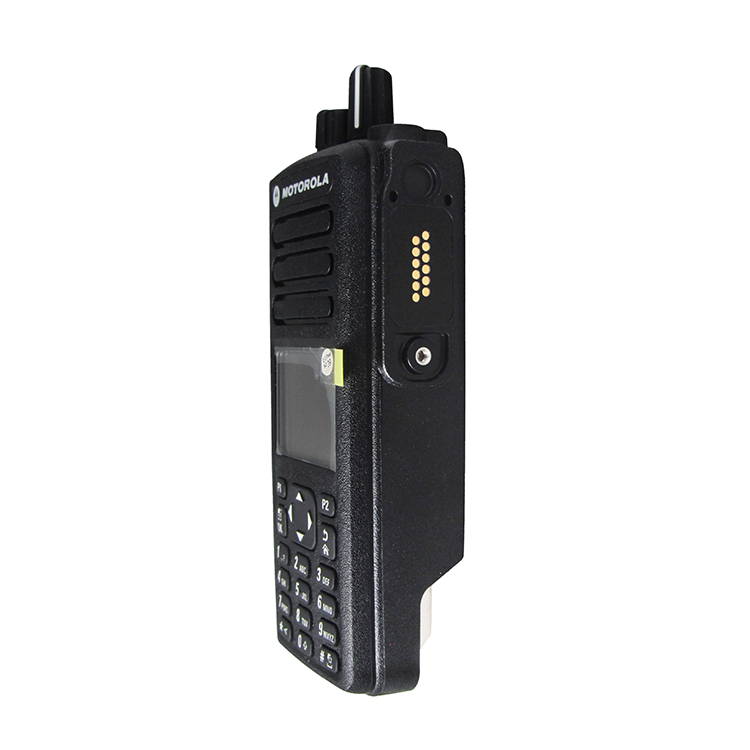

Motorola Digital Two Way Radio for North America region Walkie Talkie XPR7550
Frequency Range: VHF 136-174MHz; UHF 403-527MHz
Channel Capacity: 1000
Weight: 335.5g (130.3 x 55.2 x 35.8 mm )
Dust and Water Intrusion: IP57
1.Functions
1). Exceptionally Intuitive,Full Colour Display
Features an enhanced 5-line display with a flexible menu-driven interface. Built-in photosensor intuitively adjusts backlighting on the screen to optimize viewing even in broad daylight. Night mode makes the screen easier to read in dark environments.
2). Productivity-enhancing,Data Applications
Features the industry's largest application developer program that offers customized data applications tailored to your business needs: location tracking, work order ticket management, Bluetooth data, email gateways, dispatch and telephony.
3). Best-in-class Audio
Loud front-facing speaker, plus unique features such as Intelligent Audio and Voice Announcement to help you hear and speak clearly wherever your employees work.
4). Covert and Discreet When It Counts
Make discreet communications easier; covert mode turns off the display, visible LEDs and audible tones. Vibrate alert is another option for discreet communications.
5). Expand Capacity and Coverage
Experience the far-reaching coverage of MOTOTRBO.
IP Site Connect uses the Internet to extend coverage to create a wide-area network, while Capacity Plus single-site trunking expands capacity to over 1000 users.
6). Freedom to Move Around
Experience convenient communications with Bluetooth audio embedded in the radio. Take advantage of Motorola's unique Operations Critical Wireless earpieces designed for easy, reliable wireless communications.
7). Share Information,Instantly with Bluetooth Data
Connect wirelessly to Bluetooth data devices making it easy to share information real-time.
8). Increased Efficiency with Work Order Ticket Management
Read and respond to work order tickets at a glance and keep your business running efficiently.
9). Flexible and Easy Text Messaging
Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests.
10). Productivity-enhancing Data Applications
Features the industry's largest application developer program that offers customized data applications tailored to your business needs: location tracking, work order ticket management, Bluetooth data, email gateways, dispatch, telephony and man-down.
2.Specifications
GENERAL SPECIFICATIONS
Channel Capacity
1000
Frequency
136-174 MHz 403-527 MHz
Dimensions (HxWxL)
with NiMH Battery 1400Mah 130.3 x 55.2 x
38.7 mm
IMPRES Li-ion Slim (1600mAh) battery 130.3 x 55.2
x 35.8 mm
IMPRES Hi-Cap Li-ion (2250 mAh) battery 130.3 x
55.2 x 41.1 mm
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 130.3
x 55.2 x 41.1 mm
Weight with battery:
with NiMH Battery 1400Mah 425.5 g (15.01 oz)
IMPRES Li-ion Slim (1600mAh) battery 335.5 g
(11.83 oz)
IMPRES Hi-Cap Li-ion (2250 mAh) battery 355.5 g (12.54
oz)
IMPRES Hi-Cap Li-ion FM (2350 mAh) battery 365.5
g (12.89 oz)
Power Supply
7.5 V (Nominal)
Average battery life at 5/5/90 duty cycle with battery
saver enabled in carrier squelch and transmitter in high power
IMPRES LiIon Std Battery
Analogue: 8 hrs/Digital: 11.8 hrs
IMPRES LiIon HiCap Battery
Analogue: 11.5 hrs/Digital: 17 hrs
IMPRES FM LiIon Battery
Analogue: 12.3 hrs/Digital: 18.1 hrs
NiMH Battery
Analogue: 7 hrs/ Digital: 10.2 hrs
RECEIVER
Frequency
136-174 MHz;403-527 MHz
Channel Spacing
12.5 kHz/ 20/25 kHz
Frequency Stability
+/- 0.5 ppm
Analogue Sensitivity
0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD);
Digital Sensitivity
5% BER: 0.3 uV
Intermodulation
70 dB
Adjacent Channel Selectivity
60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz
Spurious Rejection
70 dB
Rated Audio
500 mW
Audio Distortion @ Rated Audio
3% (typical)
Hum and Noise
-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz
Audio Response
+1, -3 dB
Conducted Spurious Emission
-57 dBm
TRANSMITTER
Frequency
136-174 MHz;403-512 MHz
Channel Spacing
12.5 kHz/ 20/25 kHz
Frequency Stability
+/- 1.5 ppm (DP3600)
Power Output
UHF
1-5 W
VHF
1-4W
Modulation Limiting
+/- 2.5 kHz @ 12.5 kHz
+/- 4 kHz @ 20 kHz
+/- 5.0 kHz @ 25 kHz
FM Hum and Noise
-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz
Conducted / Radiated Emission
-36 dBm < 1 GHz;-30 dBm > 1 GHz
Adjacent Channel Power
-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz
Audio Response
+1, -3 dB
Audio Distortion
3%
Digital Vocoder Type
AMBE+2
Digital Protocol
ETSI-TS 102 361-1, 2 & 3
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
-30° C / +60° C
Storage Temperature
-40° C / +85° C
Temperature Shock
Per MIL-STD
Humidity
Per MIL-STD
Water and Dust Intrusion
IP57, MIL-STD
GPS
Accuracy specs are for long-term tracking (95th
percentile values > 5 satellites visible at a nominal -130 dBm signal
strength)
TTFF (Time To First Fix) Cold Start
< 2 minutes
TTFF (Time To First Fix) Hot Start
< 10 seconds
Horizontal Accuracy
< 10 meters
Bluetooth
Version
Supports Bluetooth? 2.1 + EDR Specification
Profiles Supported
Bluetooth Headset Profile (HSP), Serial Port Profile
(SPP), Motorola fast push-to-talk.
Devices Supported
Radio supports 1 Bluetooth audio accessory and 1
Bluetooth data device simultaneously
Range
Class 2, 10 metres
0.4 uV (20 dB SINAD)
