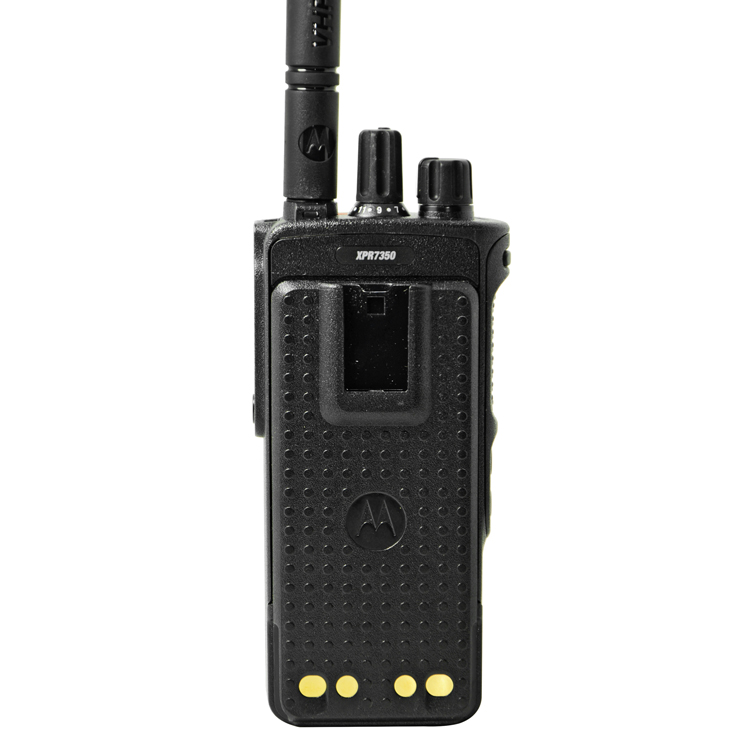

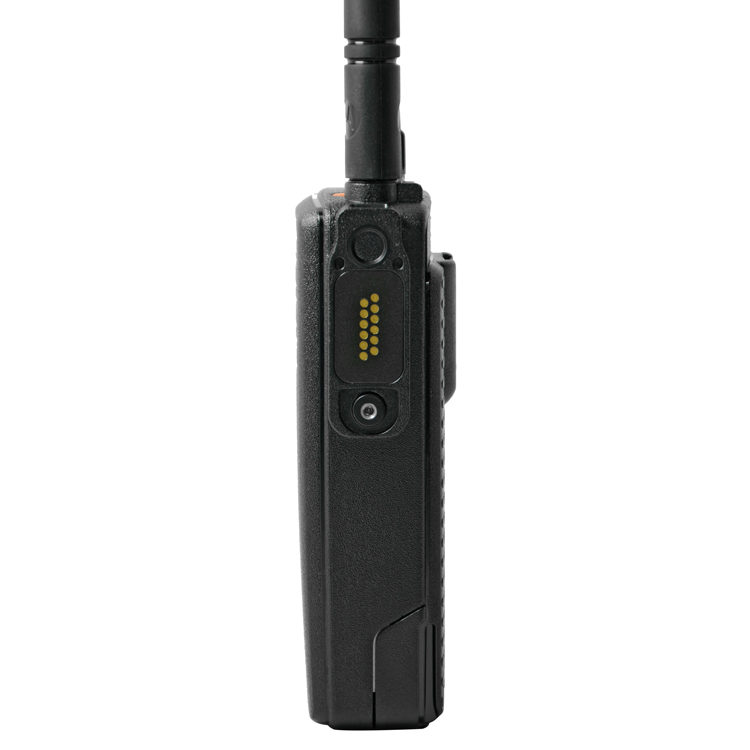

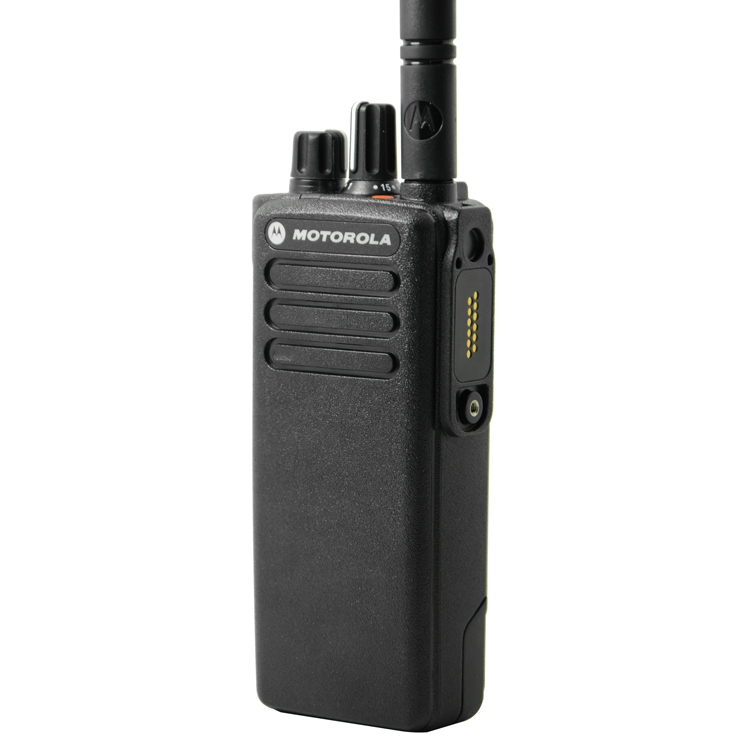

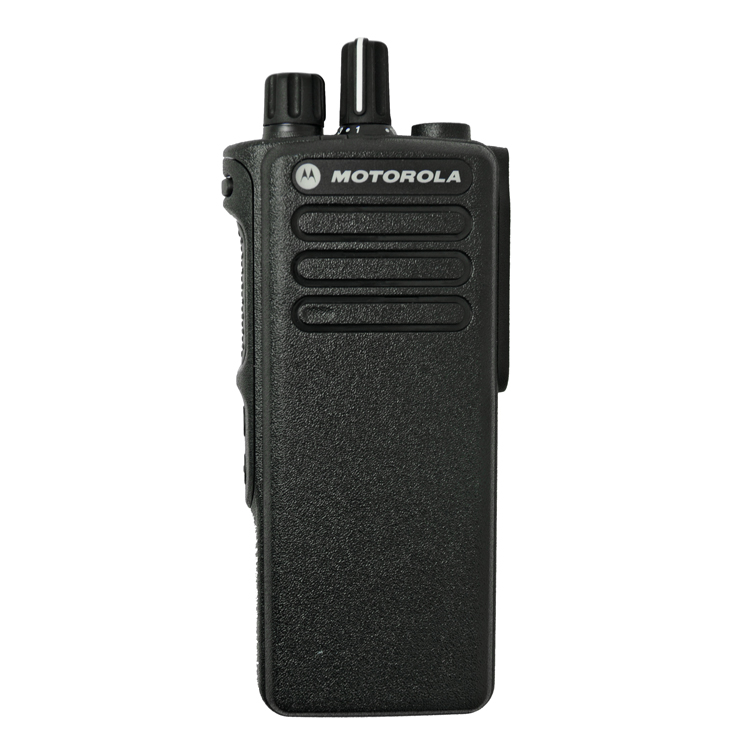

Motorola DMR FM Walkie Talkie With Bluetooth Two Way Radio XPR7350

GENERAL SPECIFICATIONS

Channel Capacity

32

Frequency

136-174 MHz   403-527 MHz

Dimensions (HxWxL)

with NiMH Battery 1400Mah  130.3 x 55.2 x  38.7 mm

IMPRES Li-ion Slim (1600mAh) battery  130.3 x 55.2  x 35.8 mm

IMPRES Hi-Cap Li-ion (2250 mAh) battery  130.3 x  55.2 x 41.1 mm

IMPRES Hi-Cap Li-ion FM (2350 mAh) battery  130.3  x 55.2 x 41.1 mm

Weight with battery:

with NiMH Battery 1400Mah  425.5 g (15.01 oz)

IMPRES Li-ion Slim (1600mAh) battery  335.5 g  (11.83 oz)

IMPRES Hi-Cap Li-ion (2250 mAh) battery  355.5 g  (12.54 oz)

IMPRES Hi-Cap Li-ion FM (2350 mAh) battery  365.5  g (12.89 oz)

Power Supply

7.5 V (Nominal)

Average battery life at 5/5/90 duty cycle with battery  saver enabled in carrier squelch and transmitter in high power

IMPRES LiIon Std Battery

Analogue: 8 hrs/Digital: 11.8 hrs

IMPRES LiIon HiCap Battery

Analogue: 11.5 hrs/Digital: 17 hrs

IMPRES FM LiIon Battery

Analogue: 12.3 hrs/Digital: 18.1 hrs

NiMH Battery

Analogue: 7 hrs/ Digital: 10.2 hrs

RECEIVER

Frequency

136-174 MHz;403-527 MHz

Channel Spacing

12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 0.5 ppm

Analogue Sensitivity

0.30 uV (12 dB SINAD);0.22 uV (typical) (12 dB SINAD);
0.4 uV (20 dB SINAD)

Digital Sensitivity

5% BER: 0.3 uV

Intermodulation

70 dB

Adjacent Channel Selectivity

60 dB @ 12.5 kHz,;70 dB @ 20/25 kHz

Spurious Rejection

70 dB

Rated Audio

500 mW

Audio Distortion @ Rated Audio

3% (typical)

Hum and Noise

-40 dB @ 12.5 kHz; -45 dB @ 20/25 kHz

Audio Response

 +1, -3 dB

Conducted Spurious Emission

 -57 dBm

TRANSMITTER

Frequency

 136-174 MHz;403-512 MHz

Channel Spacing

 12.5 kHz/ 20/25 kHz

Frequency Stability

+/- 1.5 ppm (DP3600)

Power Output

UHF

1-5 W

VHF

1-4W

Modulation Limiting

+/- 2.5 kHz @ 12.5 kHz

+/- 4 kHz @ 20 kHz

+/- 5.0 kHz @ 25 kHz

FM Hum and Noise

-40 dB @ 12.5 kHz; A41-45 dB @ 20/25 kHz

Conducted / Radiated Emission

-36 dBm < 1 GHz;-30 dBm > 1 GHz

Adjacent Channel Power

-60 dB @ 12.5 kHz;-70 dB @ 20/25 kHz

Audio Response

+1, -3 dB

Audio Distortion

3%

Digital Vocoder Type

AMBE+2

Digital Protocol

ETSI-TS 102 361-1, 2 & 3

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

 -30° C / +60° C

Storage Temperature

-40° C / +85° C

Temperature Shock

Per MIL-STD

Humidity

Per MIL-STD

Water and Dust Intrusion

IP57, MIL-STD

GPS

Accuracy specs are for long-term tracking (95th  percentile values > 5 satellites visible at a nominal -130 dBm signal  strength)

TTFF (Time To First Fix) Cold Start

< 2 minutes

TTFF (Time To First Fix) Hot Start

< 10 seconds

Horizontal Accuracy

< 10 meters

Bluetooth

Version

Supports Bluetooth? 2.1 + EDR Specification

Profiles   Supported

Bluetooth Headset Profile (HSP), Serial Port Profile

(SPP), Motorola fast push-to-talk.

Devices  Supported

Radio supports 1 Bluetooth audio accessory and 1

Bluetooth data device simultaneously

Range

Class 2, 10 metres
