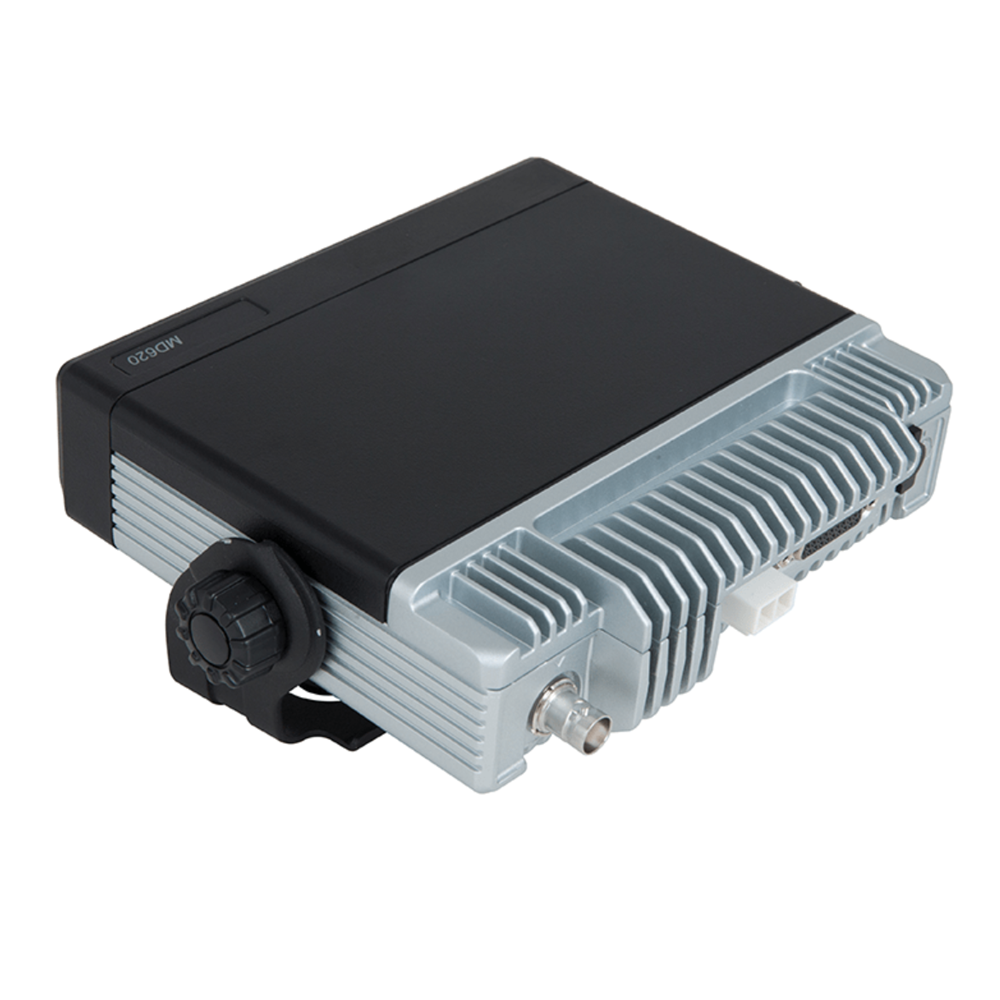

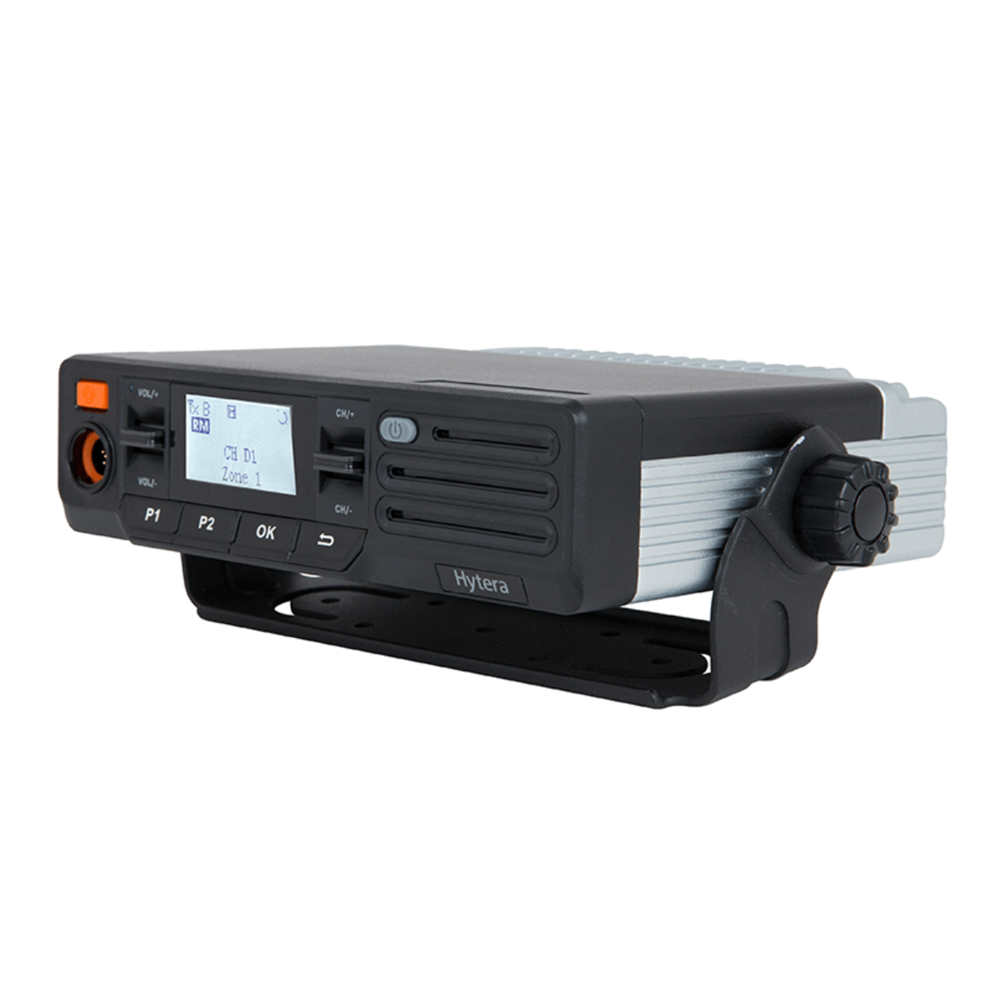

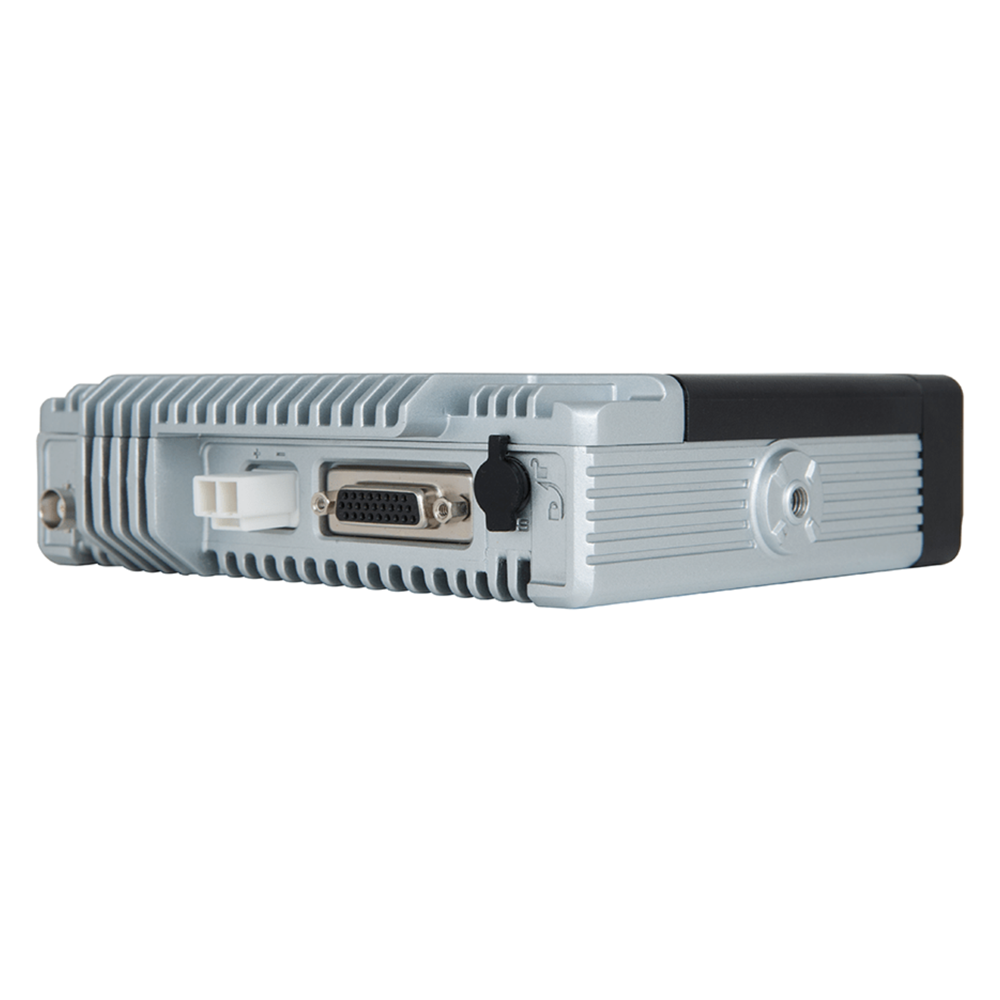

• Hytera DMR Mobile Vehicle Radio MD620
  • Hytera DMR Mobile Vehicle Radio MD620
  • Hytera DMR Mobile Vehicle Radio MD620
Hytera DMR Mobile Vehicle Radio MD620Hytera DMR Mobile Vehicle Radio MD620Hytera DMR Mobile Vehicle Radio MD620

Hytera DMR Mobile Vehicle Radio MD620

Hytera DMR Mobile Vehicle Radio MD620

EMAIL

1.Features



This radio is for users engaged in commerce and industry, such as in taxis, freight cars, and school buses. It is thin and stylish. It is made of rugged aluminum alloy. Meanwhile, a palm microphone is supplied for easy operation. In addition, it is compatible with both analog and digital modes.



1). A&D Auto Detect

Compatible with analog conventional and digital conventional modes Allow MD62X to simultaneously monitor analog and digital modes and automatically respond in each mode. It is an easy way for migration to digital from analog.



2). Long-range Communication

With 50 W output power and higher RX sensitivity, the MD62X dramatically extends the communication coverage.



3). Pseudo trunk

Several talk groups share the same frequency , and each one of them can dynamically chose to use one of the slots to talk . This is a two-slot-trunked mode While time-slot 1 is busy , MD62X will use time-slot 2 to transmit



4). GPS and Bluetooth (Option)

With an external GPS module and GPS antenna , MD62X can upload its realtime position to AVL applications.Built-in Bluetooth supports MD62X to have wireless audio accessories and extemal PTT device connected.



5). Data services

MD62X supports data capabilities , such as call alias , contacts ,history , text message .


2. Specifications


General
Frequency RangeUHF: 400-470MHz; VHF: 136-174MHz
Channel Capacity256 (16 channels per zone)
Zone Capacity16
Current Drain (Standby)around 0.3A
Current Drain (Receive)< 1 A
Current Drain (Transmit)1W:<3A 25W:<8A 45W:<12A 5W:<5A
Dimensions (H×W×D) mm164*43*150mm
Weight1100g
DisplayLCD Display:128*64 pixels, monochrome, 1.5 inch, 2 rows
Receiver
Sensitivity (Digital)Sensitivity (Digital)
Rated Audio Power Output (Internal)Internal(@16 ohm olad)4W
Rated Audio Power Output (External)External (@8 ohm load) 8W
Max. Audio Power Output (Internal)Internal(@16 ohm olad)6W
Max. Audio Power Output (External)External(@8 ohm load)12W
Transmitter
RF Power OutputLow power version:1-25W (UHF/VHF) High power version:5-45W(UHF) / 5-50W(VHF)
Digital Vocoder TypeAMBE+2™/SELP
Environmental
Operating Temperature-30℃~+60℃
Storage Temperature-40℃~+85℃
ESD12.5KHz Data Only: 7K60FXD 12.5KHz Data&Voice: 7K60FXW
Dust & Water ProtectionIP54 standard
HumidityMIL-STD-810 G standard
Vibration,Drop&Shock

MIL-STD-810 G
