Frequency Range: UHF 403-470MHz
Storage Channel: 16
weight: 203g with Li-ion Battery
Dimensions: 54 x 113 x 24.9 mm
1. Features

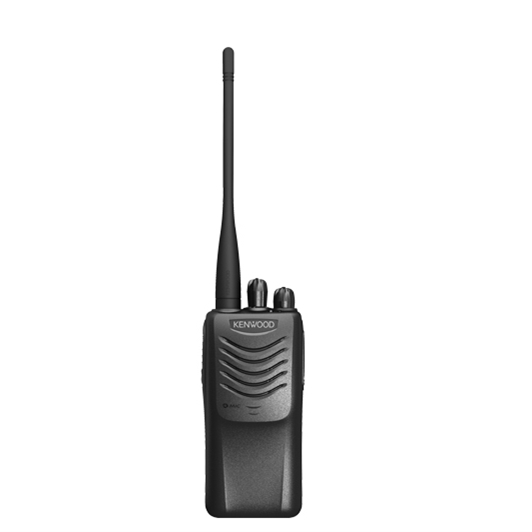

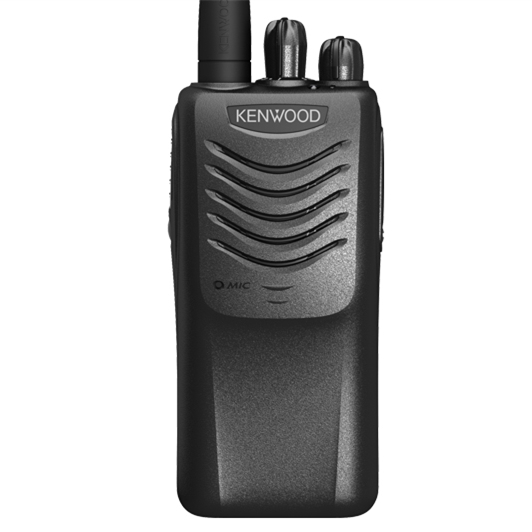

Slim, thin and light – KENWOOD’s TK-3000 is supremely easy to handle and to operate. Yet this handy compact radio is extremely reliable, meeting the famously tough MIL-STD 810 C/D/E/F and G specifications. With its well-balanced performance, it makes perfect business sense – especially for inventory control and service industry operations.
Thinner and lighter – the TK-3000 is ideal for hooking on a belt or even slipping into a coat pocket. The slim design fits neatly in your hand and it weighs only 203g with the Li-Ion battery.
This compact, user-friendly portable offers a total of 16 channels, and each can be assigned a QT and DQT tone key to eliminate unwanted signals. You can also assign the 16th channel, if free, to the scan function. This added convenience means that the PF key is freed up for some other function.

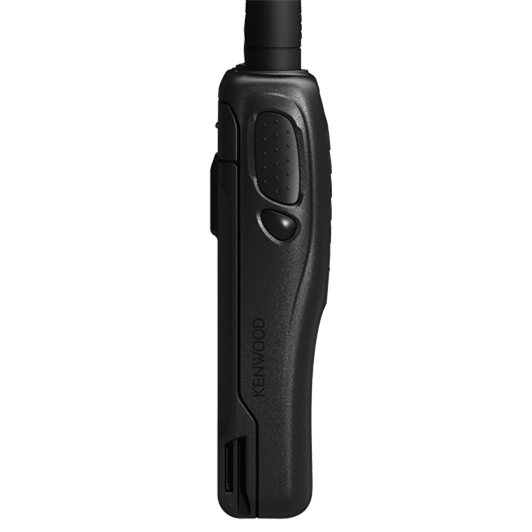

The side PF key can be programmed for enhanced operating ease, while the adjustable Hold feature doubles the number of functions at yourfingertips.
The TK-3000 is ready for use immediately after purchase. It comes with all necessary accessories, including a charger, battery pack and antenna. A handy belt clip is also provided. There is no need to buy extra accessories for normal operation.
The TK-3000 is built to survive hard knocks, drops and all-weather environments. It meets or exceeds the stringent IP54 dust and water intrusion standards as well as the MIL-STD 810 C, D, E, F & G environmental standards.
- Ultra Thin (W x H x D: 54 x 113 x 24.9 mm)
- Lightweight (203g with Li-ion Battery)
- 16 Channels with Scan Function
- 4W (350-390 MHz) Models
- Programmable Function Key with Hold
- All-in-one Package(Antenna, Li-ion Battery, Rapid Charger and Belt Clip)
- IP54 dust and water intrusion standards
- MIL-STD 810 C, D, E, F & G environmental standards
- QT / DQT signaling
- DTMF Enc. (PTT ID, Autodial)
- Priority Scan
- Windows® Programming and Tuning
- Wide/Narrow Channel Bandwidth
- VOX ready
- Battery-Saver
- Busy Channel Lockout
- Time-Out-Timer
- Low-Battery Alert
- Tri-Colour LED
- Wired Clone
2. Specifications
GENERAL |
||
Frequency Range |
400 - 430 MHz, 440 - 480 MHz |
|
Number of Channels |
16 channels |
|
Channel Spacing |
25 kHz / 12.5 kHz |
|
Channel Step |
5, 6.25 kHz |
|
Operating Voltage |
7.5 V DC ±20 % |
|
Battery Life |
Approx. 10 hours |
|
Operating Temperature |
-20°C ~ +60°C |
|
Frequency Stability |
2.5 ppm |
|
Antenna Impedance |
50 Ω |
|
Channel Frequency Spread |
40 MHz |
|
Dimensions (W x H x D), |
Radio only |
54 x 113 x 14 mm |
with KNB-63L |
54 x 113 x 24.9 mm |
|
Weight (net) |
Body only |
Approx. 130 g |
with KNB-63L |
Approx. 203 g |
|
RECEIVER |
||
Sensitivity (12 dB SINAD) |
Wide / Narrow |
0.25 μV / 0.28 μ |
Selectivity |
Wide / Narrow |
70 dB / 60 dB |
Intermodulation Distortion |
Wide / Narrow |
65 dB / 60 dB |
Spurious Response |
60 dB |
|
Audio Distortion |
Less than 5 % |
|
Audio Output |
500 mW / 8 Ω |
|
TRANSMITTER |
||
RF Power Output (High / Low) |
4 W / 1 W |
|
Spurious Response |
65 dB |
|
Modulation |
Wide / Narrow |
16K0F3E / 11K0F3E |
FM Hum & Noise |
Wide / Narrow |
45 dB / 40 dB |
Audio Distortion |
Less than 5 % |
