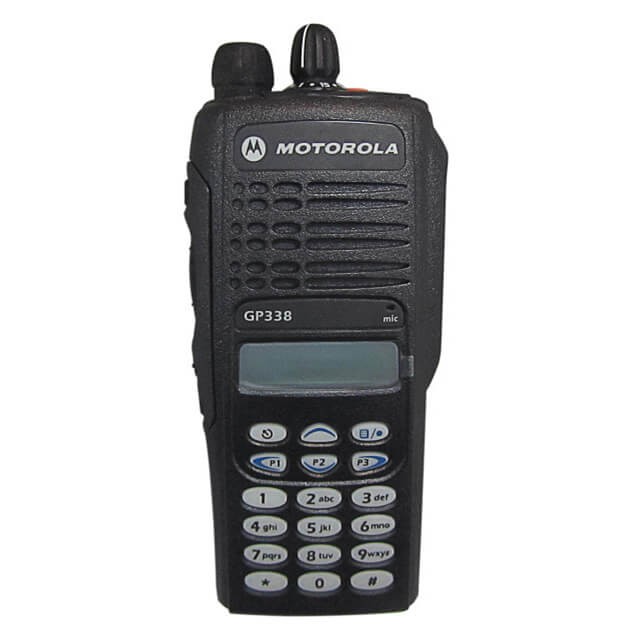

Motorola Walkie Talkie GP338 Wire Communications VHF Radio136-174Mhz

Frequency Range: VHF 136-174; UHF 1 403-470, UHF2 450-520 MHz
Storage Channel: 128
Dimensions: 137 x 57.5 x 37.5 mm
weight: 358 g

EMAIL

1.Features

Signalling

The radio software encompasses Private Line™ and MDC selective signalling.

Channel Scan

Allows activity on different communications channels to be monitored and answered.

X-Pand™ Voice Compression and Low Level Expansion

Crisp, clear and strong audio quality in virtually any noisy environment. Low level expansion allows further improvements in audio quality by reducing noise usually heard during pauses in conversation.

Voice Operated Transmit (VOX)

Hands free operation when used with VOX headset accessory.

Adjustable Power Levels

The radio output power has two settings - low power extends battery life and high power allows the radio to transmit over a greater distance.

Escalert Call Features

Escalating alert tone to alert user of incoming call. Starts at a very low level and increases until call answered.

Option Board Expandability

You can expand the existing capabilities by adding one of the following option boards:

• Encryption for message security.

• SmarTrunk II for low cost trunking.

• Voice Storage option board provides voice recorder features allowing you to store and retrieve messages.

Talkaround

Freedom to communicate utilising a system or dispatcher for wide area coverage, or bypass and talk directly to another unit for easy local unit-to-unit communications.

Caller Tone Tagging

Allows different alert tones to be assigned to different caller identities.

Programmable Channel Spacing (12.5/20/25 KHz)

Flexible and easy migration of channel spacing requirements in any situation.



2.Specifications

Genneral

 Frequency Range

 VHF:  136~174MHz

 UHF: 403~470MHz450-520MHz

 Memory Channel

 128

 Channel spacing

 12.5/20/25KHz

 Operating Temperature

 -30℃~+60℃

 Operating Voltage

 DC 7.5V

 Demission

 137 x 57.5 x 37.5 mm

 Weight

 420g

Transmission Part

 Output power

 VHF:  1-5W

 UHF:  1-4W

 Frequency stability

 ±0.5ppm

 Hum and Noise

≤-40dB (12.5kHz)

 ≤-45dB (25kHz)

 Adjacent Channel Power

 60 dB  (12.5 kHz)

 70 dB  (20 and 25 kHz)

 4FSK Digital  Modulation

 12.5 kHz Data: 7K60F1D and 7K60FXD

 12.5 kHz Voice: 7K60F1E and 7K60FXE

 Combination of 12.5 kHz Voice and Data: 7K60F1W

 Modulation Limiting

 ± 2.5 kHz @ 12.5 kHz

 ± 4.0 kHz @ 20 kHz

 ± 5.0 kHz @ 25 kHz

Reception Part

 Analog Sensitivity

 0.16 uV

 Digital  Sensitivity

 0.14 uV

 Intermodulation

 70 dB

 Adjacent Channel Selectivity

 60 dB (12.5 kHz)

 70 dB (20/25 kHz)

 Spurious Rejection

 70dB

 Hum and Noise

 -40 dB (12.5 kHz)

 -45 dB (25 kHz)
